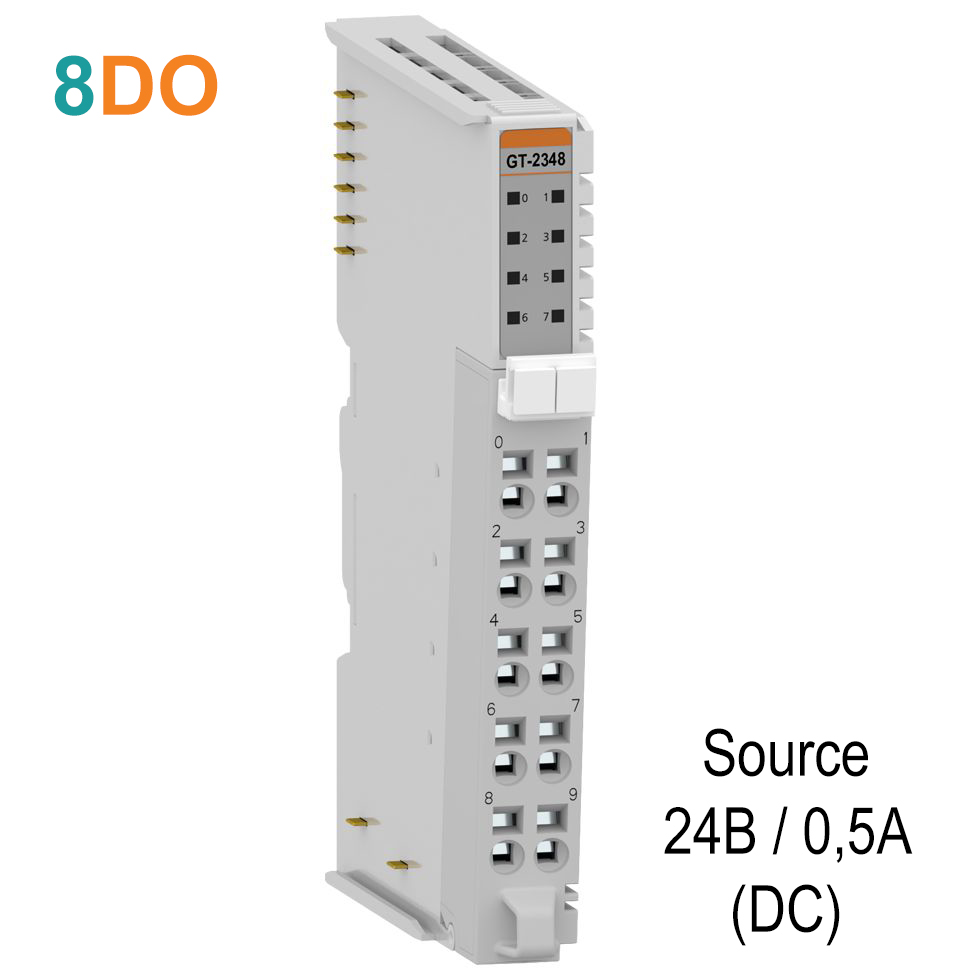

Output per module |
8 points source type |
|
Indicators |
8 green output status |
|
Output voltage range |
24Vdc nominal Min. 15Vdc ~ Max. 30Vdc |
|
On-state voltage drop |
3.0Vdc @ 2A (TBD) |
|
On-state min. current |
Min. 1mA |
|
Off-state leakage current |
Max. 3uA (TBD) |
|
Output signal delay |
OFF to ON : Max. 0.9ms (TBD) ON to OFF : Max. 0.9ms (TBD) |
|
Output current rating |
Refer to Specification of NA -GT9xxx: Max. 2A per channel / Max. 10A per unit. -GL9xxx: Max. 2A per channel / Max. 8A per unit. |
|
Protection(1) |
None |
|
Common type |
8 points / 2 COM |
|
General specification |
|
|
Power dissipation |
Max. 40mA @ 5Vdc (TBD) |
|
Isolation |
I/O to Logic : photocoupler isolation Field power : non-isolation |
|
UL field power |
Supply voltage : 24Vdc nominal, Class 2 |
|
Field power |
Supply voltage : 24Vdc nominal Voltage range : 15~30Vdc Power dissipation: 10mA @ 24Vdc (TBD) |
|
Single Wiring |
I/O Cable Max. 2.0mm2(AWG 14) |
|
Weight |
60g |
|
Module size |
12mm x 99mm x 70mm |
