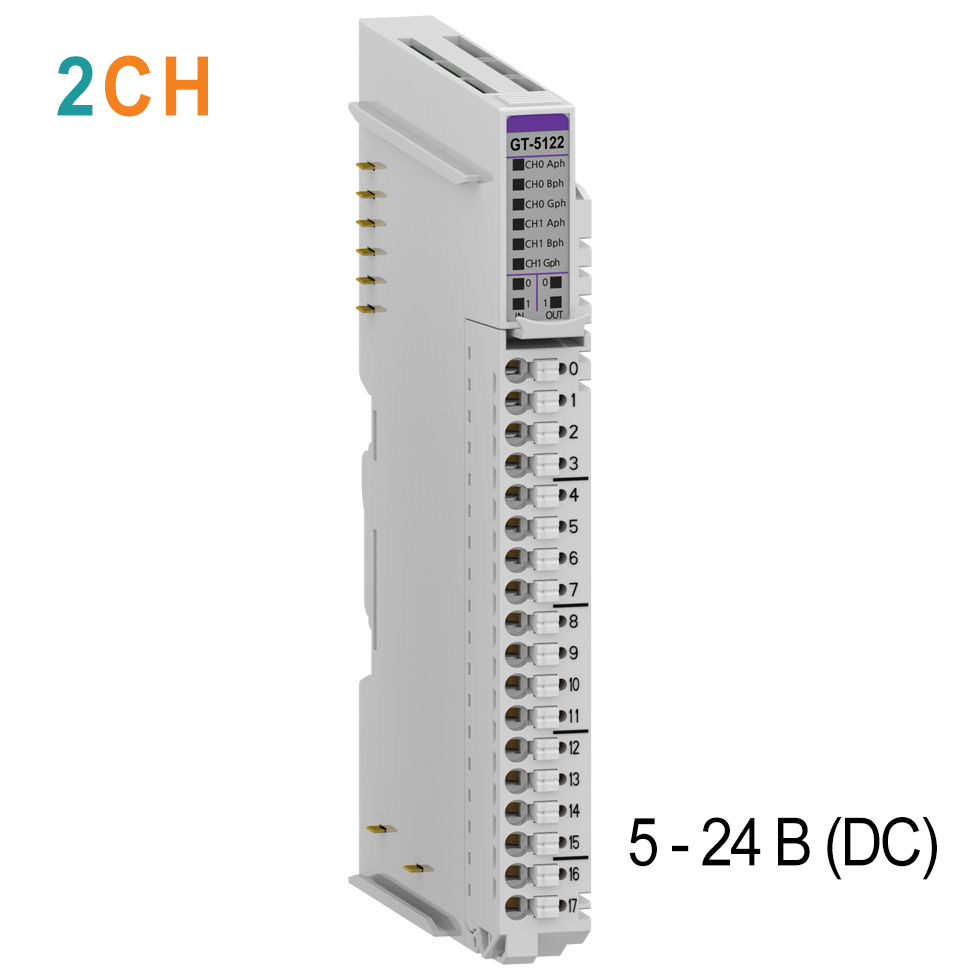

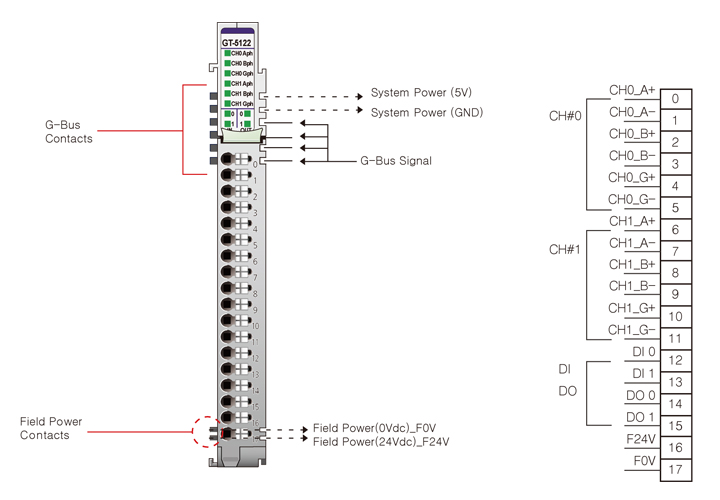

Артикул:
GT-5122
|
Number of channel |
2 channel - Encoder, High Speed Counter, Frequency measurement Pulse width & Period measurement |
| Indicators | 6 green terminal input |
| Input voltage |
5~24Vdc nominal |
| Input current |
4mA @ 5Vdc 11mA @ 24Vdc |
| Min on-state voltage | 4.8≥Vdc |
| Input frequency |
0~750kHz Encoder Mode *(Except Encoder x1) 0~500kHz Counting Mode |
| Counting mode |
1-Input Mode : Up,Down 2-Input Mode : Encoder 4x, Encoder 2x, Up/Inhibit, Up/Reset, Down/Inhibit, Down/Reset, UP/Down, Clock/Direction, Frequency Measurement, Pulse Width & Period measurement |
| Gate Function Mode |
Store/Continue Store/Wait/Resume Store-Reset/Wait/Start Store-Reset/Start |
| Counter size | 32bit-wide/channel |
| Digital Input Specification | |
| Input per module | 2 point sink type |
| Indicators | 2 green terminal input LEDs |
| Input On-state Voltage |
24Vdc nominal 15Vdc~28.8Vdc |
| On-stat Current |
2.3mA @ 24Vdc 2.7mA @ 28.8Vdc |
| Input Signal Delay |
OFF to ON : Max. 0.3ms ON to OFF : Max. 0.3ms |
| Nominal Input Impedance | 11.7kΩ |
| Digital Output Specification | |
| Output per module | 2 point source type |
| Indicators | 2 green terminal output LEDs |
| Output Voltage Range |
24Vdc nominal 15Vdc ~ 28.8Vdc |
| On-state Voltage Drop | Max 0.5Vdc @25℃ |
| On-state Min. Current | 1mA per channel |
| Off-state Leakage Current | Max. 20uA |
| Output Signal Delay |
OFF to ON : Max. 0.3ms ON to OFF : Max. 0.3ms |
| Output Current Rating | Max. 0.3A / Channel |
| Protection |
Reverse voltage protection Short circuit protection |
| General Specification | |
| Power dissipation | Max. 120mA @ 5Vdc |
| Isolation | I/O to Logic : photocoupler isolation |
| UL field power | Supply Voltage : 24Vdc nominal, Class 2 |
| Field power |
Supply voltage : 24Vdc nominal Voltage range : 15~28.8Vdc Power dissipation : 15mA@24Vdc |
| Wiring | I/O Cable Max. 0.75mm2(AWG 18) |
| Weight | 63g |
| Module Size | 12mm x 109mm x 70mm |
Серия
Серия G
Тип модуля
Счётчики
Количество каналов
2
Тип сигнала
24 В (DC)
Частотный диапазон
0 - 750 кГц
Тип разъема
RTB 18
Горячая замена
?
Hot backup
Не поддерживается
