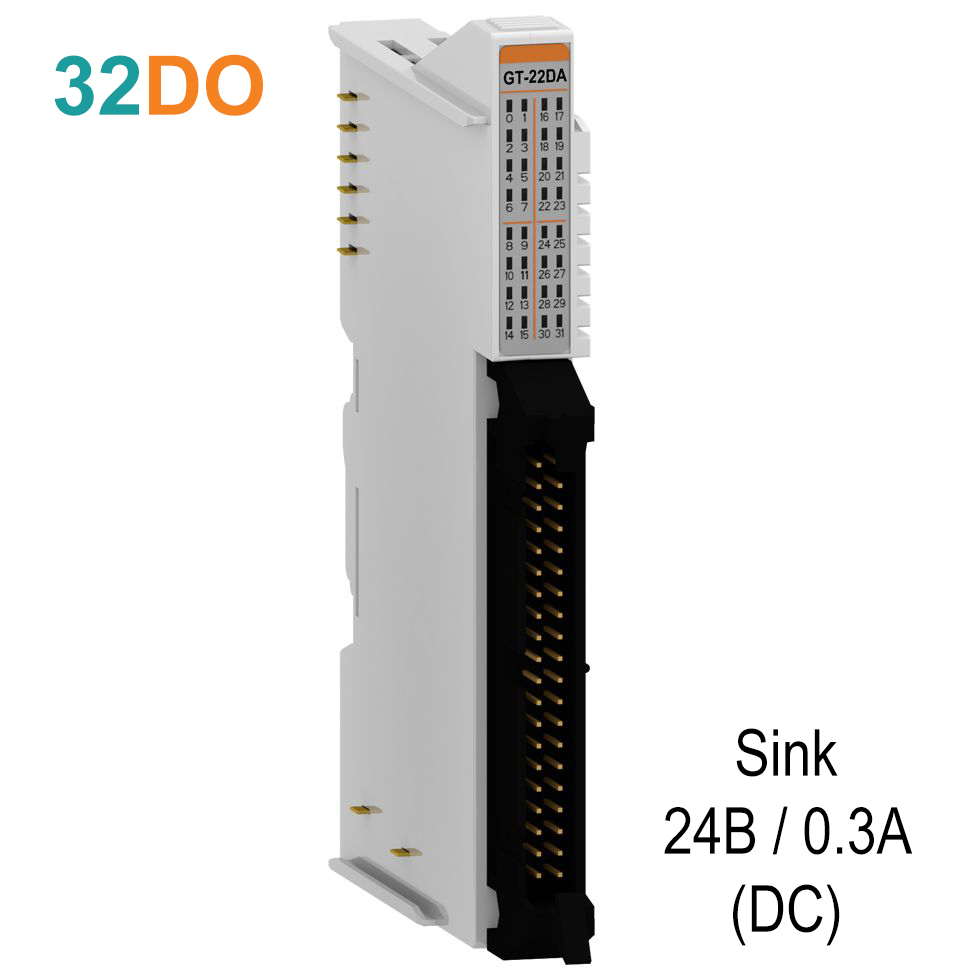

Output per module |
32 points sink type |
|
Indicators |
32 green output status |
|
Output voltage range |
24Vdc nominal |
|
On-state voltage drop |
0.5Vdc @ 0.3A (TBD) |
|
On-state min. current |
Min. 1mA |
|
Off-state leakage current |
Max. 3uA (TBD) |
|
Output signal delay |
OFF to ON : Max. 0.3ms (TBD) ON to OFF : Max. 0.5ms (TBD) |
|
Output current rating |
0.3A per channel / Max. 6.0A per unit |
|
Protection(1) |
None |
|
Common type |
32 points / 8 COM |
|
General specification |
|
|
Power dissipation |
Max. 65mA @ 5Vdc(TBD) |
|
Isolation |
I/O to Logic : photocoupler isolation Field power : non-isolation |
|
UL field power |
Supply voltage : 24Vdc nominal, Class 2 |
|
|
Supply voltage : 24Vdc nominal Voltage range : 15~30Vdc |
|

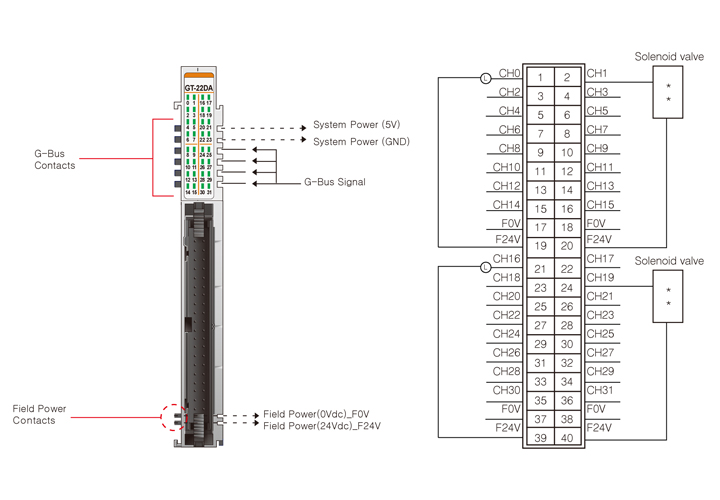

Single Wiring |
Module connector : HIF3BA-40D-2.54R |
|
Weight |
59g |
|
Module size |
12mm x 109mm x 70mm |
