Артикул:
GT-227F
Технические характеристики
| Output per module | 16 points sink type |
| Indicators | 16 green output status |
| Output voltage range | 24Vdc nominal |
| Min. 15Vdc ~ Max. 30Vdc | |
| On-state voltage drop | 3.00Vdc @ 2A |
| On-state min. current | Min. 1mA |
| Off-state leakage current | Max. 3uA |
| Output signal delay | OFF to ON : Max. 0.4ms ON to OFF : Max. 0.4ms |
| Output current rating |
Refer to Specification of NA -GT9xxx: Max. 2.0A per channel / Max. 10A per unit. -GL9xxx: Max. 2.0A per channel / Max. 8A per unit. |
| Protection | None |
| Common type | 16 points / 2 COM |
| General specification | |
| Power dissipation | Max. 50mA @ 5Vdc |
| Isolation | I/O to Logic : photocoupler isolation Field power : non-isolation |
| UL field power | Supply voltage : 24Vdc nominal, Class 2 |
| Field power |
Supply voltage : 24Vdc nominal Voltage range : 15~30Vdc Power dissipation: 10mA @ 24Vdc |

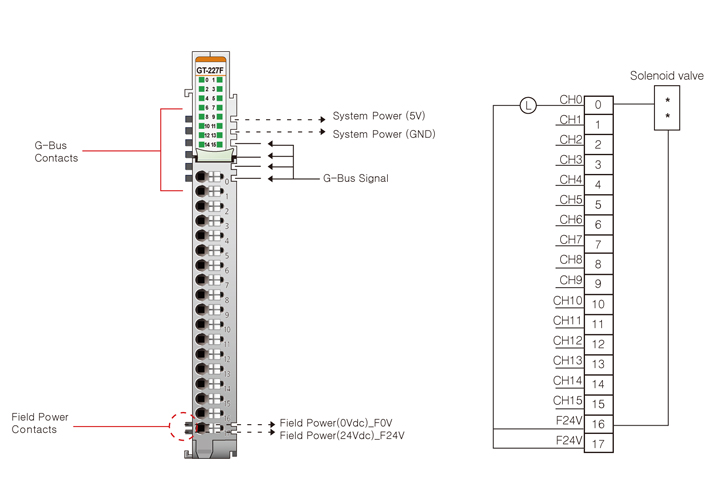

| Single Wiring | I/O Cable Max. 0.75mm²(AWG 18) |
| Weight | 48g |
| Module size | 12mm x 109mm x 70mm |
