GT-3C78
Main features
- Various type of protocols (MODBUS TCP , EtherNet IP , PROFINET , EtherCAT , CC-Link IE , CC-Link IE Field Basic , DeviceNet , PROFIBUS , MODBUS RS485, CC-Link , CanOpen , BACnet ,MODBUS RTU)- More than 90 different I/Os (Universal type of Digital Input module, 32 points slice I/O module, ERNI type connector input/output module)
- Space-saving, compact size & slice type for the module expansion
- Easy and convenient working environment for the operator when wiring and install

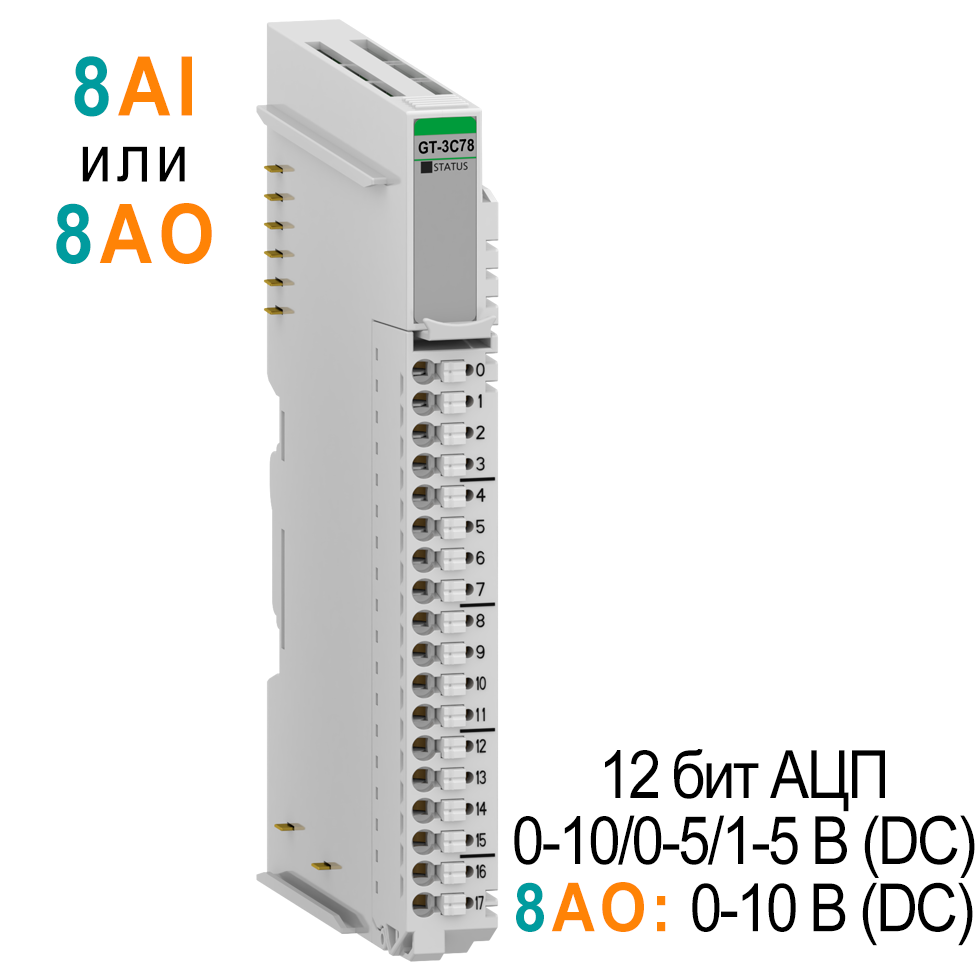

| GT-3C78 (8 Channels, Voltage Input, Voltage Output, 0~10V , 12bits) | |
| Input Specification | |
|
Inputs Per Module |
8 Channels single ended, non-isolated between channel |
| Resolution in Ranges |
12 bits : 2.44mV/Bit(0~10V) 12 bits : 1.22mV/Bit(0~5V) 12 bits : 0.977mV/Bit(1~5V) |
| Input Range |
0~10Vdc, 0~5Vdc, 1~5Vdc |
| Data Format | 16bits Integer (2' compliment) |
| Module Error |
±0.1% Full Scale @ 25℃ ambient ±0.3% Full Scale @ -40℃, 60℃ |
| Input Impedance | 469.5kΩ |
| Output Specification | |
| Output Per Module | 8 Channels single ended, non-isolated between channel |
| Resolution in range | 12bit : 2.44mV/bit |
| Output Voltage Range | 0 ~ 10V |
| Data Format | 16bits Integer (2' compliment) |
| Module Error |
±0.1% Full Scale @ 25℃ ±0.3% Full Scale @ -40℃, 60℃ |
| Load resistance | Min 2KΩ |
| General Specification | |
| Diagnostic | Diagnostic Field Power Off : LED Blinking |
| Conversion Time | 1.5msec / All channel |
| Calibration | Not Required |

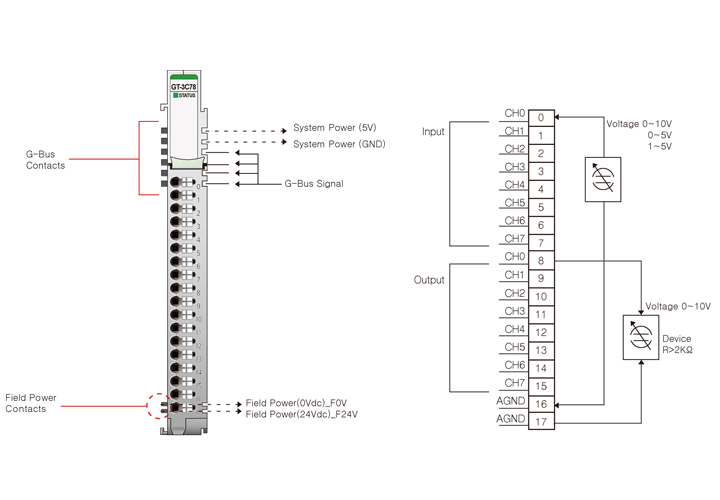

| Common Type | 2 Common, Field Power 0V is Common(AGND) |
| Power Dissipation | Max. 30mA @ 5Vdc |
| Isolation |
I/O to Logic : Photocoupler Isolation Field power : Non-Isolation |
| UL Field Power | Supply Voltage : 24Vdc nominal, Class 2 |
| Field Power |
Supply Voltage : 24Vdc nominal Supply Voltage : 18~30Vdc Power Dissipation : Max. 40mA@24Vdc |
| Wiring | I/O Cable Max. 0.75mm2(AWG 18) |
| Weight | 64g |
| Module Size | 12mm x 109mm x 70mm |
