Артикул:

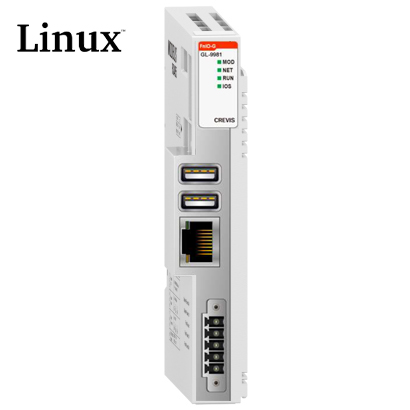

GL-9981-L
Характеристики интерфейса
Базовые характеристики
| Item | Specification |
| PIO Type | Linux Type Programmable I/O - Linux Version |
| Processor | Quad core Cortex-A72 (ARM v8) 64-bit SoC @ 1.5GHz |
| RAM | LPDDR4 1GB |
| eMMC Flash Memory | 8GB |
| Interface Connector |
RJ-45 Socket * 1pcs USB 2.0 Port * 2pcs Display Port * 1pcs |
| Ethernet Baudrate | 100Mbps, Auto-negotiation, Full Duplex |
| Indicator (TBD) |
4 LEDs 1 Green/Red, Module Status (MOD) 1 Green/Red, Network Status (NET) 1 Green/Red, PLC Status (RUN) * can be changed. 1 Green/Red, Expansion I/O Module Status (IOS) * can be changed. |
| PLC Status Control | Reset Push Botton * 1pcs Run/Stop Toggle Switch * 1pcs |
Базовые характеристики
| UL System Power | Supply voltage : 24Vdc nominal, Class2 |
| System Power |
Supply voltage : 24Vdc nominal Supply voltage range : 15~28.8Vdc Reverse polarity protection |
| Power Dissipation (TBD) | 75mA typical @ 24Vdc |
| Current for I/O Module | 1.0A @ 5Vdc |
| Isolation | System power to internal logic : Non-isolation System power I/O driver : Isolation |
| UL Field Power | Supply voltage : 24Vdc nominal, Class2 |
| Field Power | Supply voltage : 24Vdc typical (Max. 28.8Vdc) * Field Power Range is different depending on IO Module series. Refer to IO Module`s Specification. |
| Max. Current Field Power Contact | DC 8A Max |
| Wiring | I/O Cable Max. 2.0㎟(AWG 14) |
| Torque | 0.8Nm(7 lb-in) |
| Weight | 76g |
| Module size | 22mm x 109mm x 70mm |
Руководство по эксплуатации
[Manual] GL-9981 Delete codesys runtime .pdf / PDF 0.12MB
[Spec] GL-9981 (Rev 1.00).pdf / PDF 0.33MB
[Spec] GL-9981 (Rev 1.00).pdf / PDF 0.33MB
