Артикул:
ISW-501T
| Hardware Specifications | |
|---|---|

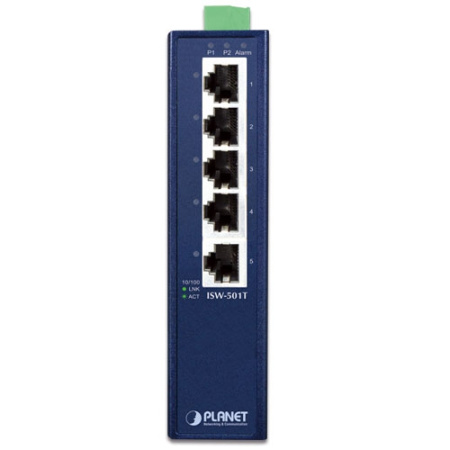

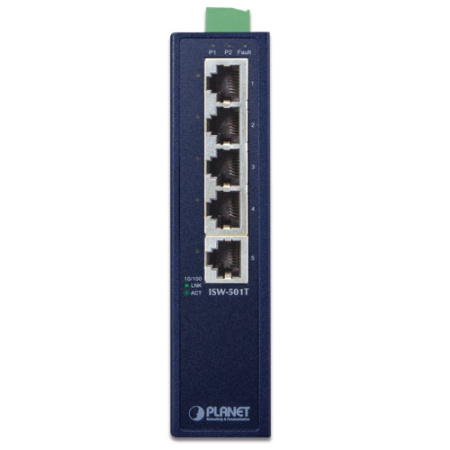

| 10/100BASE-TX Auto MDI/MDIX Ports | 5 |
| LED Indicators |
3 x LED for System and Power: ■ Green: DC Power 1 ■ Green: DC Power 2 ■ Green: Power Fault 1 x LED for each Copper Port ■ Green: 10/100 LNK/ACT |

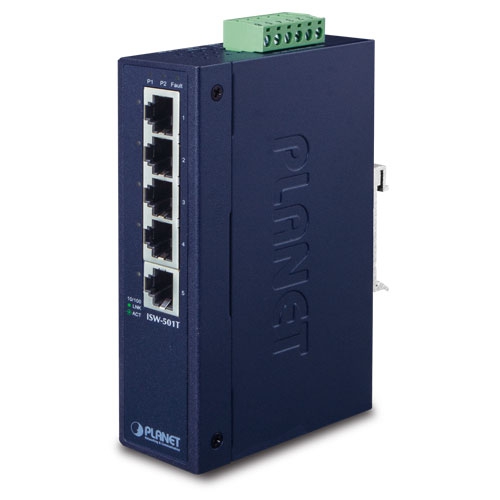

| Enclosure | IP30-rated metal case |
| Dimensions (W x D x H) | 135 x 87 x 32 mm |
| Weight | 400g |
| ESD Protection | 6KV DC |
| EFT Protection | 6KV DC |
| Power Requirements | 12~48V DC, redundant power with polarity reverse protection function, 24V AC power support |
| Power Consumption/Dissipation | 1.6 watts/5.4BTU |
| Installation | DIN rail kit and wall-mount ear |
| Alarm |
Provides one relay output for power failure Alarm relay current carry ability: 3A @ DC 30V |

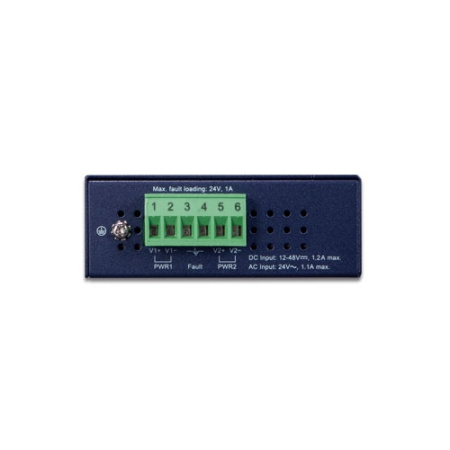

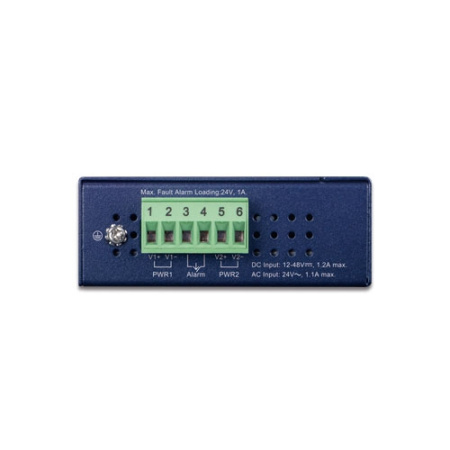

| Connector |
Removable 6-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2 |
| Switch Specifications | |
| Switch Processing Scheme | Store-and-Forward |
| Address Table | 1K |
| Buffer Memory | Embedded 448K bits packet buffer |
| Flow Control |
Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
| Switch Fabric | 1Gbps |
| Throughput (packet per second) | 0.74Mpps |
| Network Cables |
10BASE-T: 2-pair UTP Cat. 3, 4, 5, up to 100 meters 100BASE-TX: 2-pair UTP Cat. 5, 5e up to 100 meters |
| Standards Conformance | |
| Standards Compliance |
IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3x Full Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet |
| Temperature |
Operating: -40~75 degrees C Storage: -40~75 degrees C |
| Humidity | Operating: 5% to 95%, Storage: 5% to 95% (non-condensing) |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Stability Testing |
IEC60068-2-32 (free fall) IEC60068-2-27 (shock-proof) IEC60068-2-6 (vibration-proof) |
