Артикул:

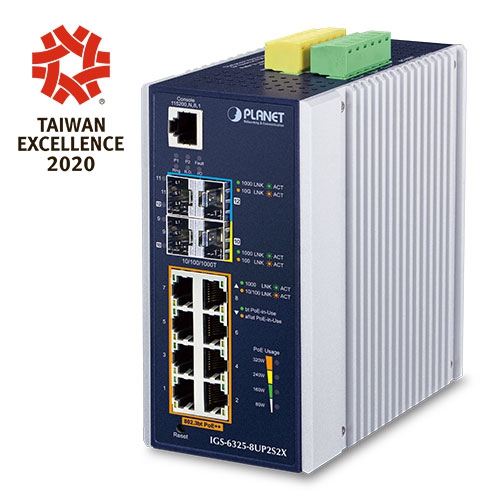

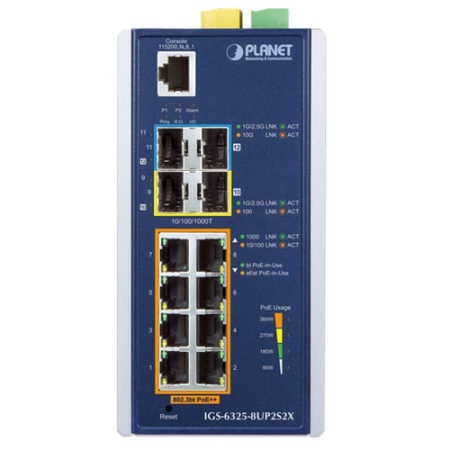

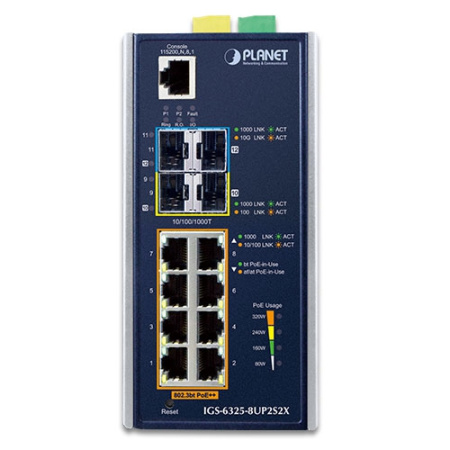

IGS-6325-8UP2S2X
| Hardware Specifications | |
|---|---|
| Copper Ports | 8 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| SFP Ports |
2 1000BASE-SX/LX/BX SFP slot interfaces (Port-9 and Port-10) Compatible with 100BASE-FX SFP |
| SFP+ Ports | 2 10GbBASE-SR/LR SFP+ slot interfaces (Port-11 to Port-12) |
| PoE Injector Ports | 8 ports with 802.3bt PoE++ injector function with Port-1 to Port-8 |
| Console | 1 x RJ45-to-RS232 serial port (115200, 8, N, 1) |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 56Gbps/non-blocking |
| Throughput (packet per second) | 41.67Mpps@ 64 bytes packet |
| Address Table | 16K entries, automatic source address learning and aging |
| Shared Data Buffer | 32Mbits |
| Jumbo Frame | 10Kbytes |
| SDRAM | 512Mbytes |
| Flash Memory | 64Mbytes |
| Flow Control |
IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
| Reset Button |
< 5 sec: System reboot > 5 sec: Factory default |
| Connector |

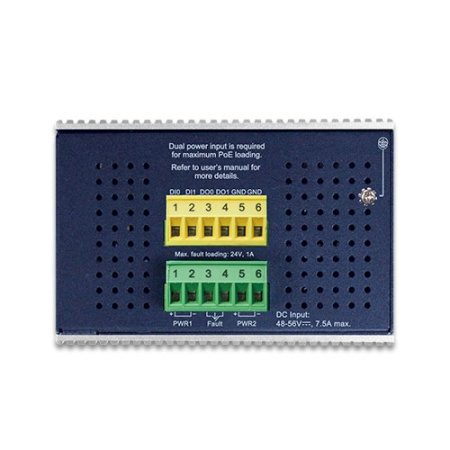

Removable 6-pin terminal block for power input Pin 1/2 for Power 1, Pin 3/4 for fault alarm, Pin 5/6 for Power 2 Removable 6-pin terminal block for DI/DO interface Pin 1/2 for DI 1 & 2, Pin 3/4 for DO 1 & 2, Pin 5/6 for GND |
| Alarm | One relay output for power failure. Alarm relay current carry ability: 1A @ 24V DC |
| Digital Input (DI) |
2 digital input: Level 0: -24~2.1V (±0.1V) Level 1: 2.1~24V (±0.1V) Input load to 24V DC, 10mA max. |
| Digital Output (DO) |
2 digital output: Open collector to 24VDC, 100mA |
| Enclosure | IP30 aluminum case |
| Installation | DIN-rail or wall mounting |
| Dimensions (W x D x H) | 76 x 107 x 152 mm |
| Weight | 1,152g |
| Power Requirements |
Dual DC 48~56V, 7.5A max. (>52V DC for 802.3bt PoE++ output recommended) |
| Power Consumption |
Max. 27 watts/92.13BTU@56V DC input (System on) Max. 395 watts/1,347.80BTU@56V DC input (Full loading with 802.3bt PoE++ function) |
| ESD Protection |
Air 8KV DC Contact 6KV DC |
| Surge Protection | 4KV DC |
| LED Indicator |
System: Power 1 (Green), Power 2 (Green) Fault Alarm (Red) Ring (Green), Ring Owner (Green) DIDO (Red) Per 10/100/1000T RJ45 PoE++ Port: 1000Mbps LNK/ACT (Green) 10/100Mbps LNK/ACT (Amber) 802.3bt PoE++-in-use x 1 (Green) 802.3at/af PoE-in-use x 1 (Amber) Per SFP Interface: 1000 LNK/ACT (Green) 100 LNK/ACT (Amber) Per SFP+ Port: 10Gbps LNK/ACT (Green) 1Gbps LNK/ACT (Amber) PoE Usage: 80W, 160W, 240W, 320W (Amber) |
| Power Over Ethernet | |
| PoE Standard |
IEEE 802.3bt PoE++ Type-4 PSE Backward compatible with 802.3at PoE+ PSE |
| PoE Power Supply Type |
■ 802.3bt ■ UPOE/POH ■ End-span ■ Mid-span ■ Force |
| PoE Power Output |
802.3bt PoE++ - Per port 52V~56V DC (depending on the power supply), max. 90 watts UPoE(PoH) - Per port 52V~56V DC (depending on the power supply), max. 95 watts IEEE 802.3at Standard - Per port 52V~56V DC (depending on the power supply), max. 36 watts Force - Per port 52V~56V DC (depending on the power supply), max. 60 watts |
| Power Pin Assignment |
End-span: 1/2(-), 3/6(+) Mid-span: 4/5(+), 7/8(-) 802.3bt/UPoE: 1/2(-), 3/6(+),4/5(+), 7/8(-) |
| PoE Power Budget | 360W maximum (depending on power input) |
| PoE Ability PD @ 12.5 watts | 8 units |
| PoE Ability PD @ 25 watts | 8 units |
| PoE Ability PD @ 51 watts | 6 units |
| PoE Ability PD @ 71 watts | 4 units |
| Layer 2 Functions | |
| Port Configuration |
Port disable/enable Auto-negotiation 10/100/1000Mbps full and half duplex mode selection Flow control disable/enable Port link capability control |
| Port Status |
Display each port’s speed duplex mode, link status, flow control status, auto negotiation status, trunk status |
| Port Mirroring |
TX/RX/both Many-to-1 monitor |
| VLAN |
802.1Q tagged VLAN Q-in-Q tunneling Private VLAN Edge (PVE) MAC-based VLAN Protocol-based VLAN Voice VLAN MVR (Multicast VLAN Registration) GVRP Up to 256 VLAN groups, out of 4095 VLAN IDs |
| Link Aggregation |
IEEE 802.3ad LACP/static trunk Supports 3 trunk groups with 4 ports per trunk group |
| Spanning Tree Protocol |
IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol |
| IGMP Snooping |
IPv4 IGMP (v1/v2/v3) snooping IPv4 IGMP querier mode support Supports 255 IGMP groups |
| MLD Snooping |
IPv6 MLD (v1/v2) snooping, IPv6 MLD querier mode support Supports 255 MLD groups |
| Access Control List |
IP-based ACL/MAC-based ACL ACL based on: - MAC Address - IP Address - Ethertype - Protocol Type - VLAN ID - DSCP - 802.1p Priority Up to 256 entries |
| Bandwidth Control |
Per port bandwidth control Ingress: 500Kb~1000Mbps Egress: 500Kb~1000Mbps |
| QoS |
Traffic classification based, strict priority and WRR 8-level priority for switching - Port number - 802.1p priority - 802.1Q VLAN tag - DSCP/TOS field in IP packet |
| Synchronization |
IEEE 1588v2 PTP(Precision Time Protocol) - Peer-to-peer transparent clock - End-to-end transparent clock |
| Layer 3 Functions | |
| IP Interfaces | Max. 128 VLAN interfaces |
| Routing Table | Max. 128 routing entries |
| Routing Protocols |
IPv4 hardware static routing IPv6 hardware static routing OSPFv2 dynamic routing |
| Management | |
| Basic Management Interfaces | Console; Telnet; Web browser; SNMP v1, v2c |
| Secure Management Interfaces | SSHv1/SSHv2, TLS, SSL, SNMP v3 |
| System Management |
Firmware upgrade by HTTP protocol through Ethernet network Configuration upload/download through HTTP Remote Syslog System log LLDP protocol NTP PLANET Smart Discovery Utility |
| SNMP MIBs |
RFC 1213 MIB-II RFC 1493 Bridge MIB RFC 1643 Ethernet MIB RFC 2863 Interface MIB RFC 2665 Ether-Like MIB RFC 2819 RMON MIB (Group 1, 2, 3 and 9) RFC 2737 Entity MIB RFC 2618 RADIUS Client MIB RFC 2863 IF-MIB RFC 2933 IGMP-STD-MIB RFC 3411 SNMP-Frameworks-MIB RFC 4292 IP Forward MIB RFC 4293 IP MIB RFC 4836 MAU-MIB IEEE 802.1X PAE LLDP |
| Standards Conformance | |
| Regulatory Compliance |
FCC Part 15 Class A CE: EN55032 EN55035 EN 62368-1/IEC 62368-1: 2014 |
| Stability Testing |
IEC60068-2-32 (free fall) IEC60068-2-27 (shock) IEC60068-2-6 (vibration) |
| Standards Compliance |
IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000T IEEE 802.3ae 10Gb/s Ethernet IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN tagging IEEE 802.1X Port Authentication Network Control IEEE 802.1ab LLDP IEEE 802.3af Power over Ethernet IEEE 802.3at Power over Ethernet Plus IEEE 802.3bt Power over Ethernet Plus Plus IEEE 802.3ah OAM IEEE 802.1ag Connectivity Fault Management (CFM) RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP v1 RFC 2236 IGMP v2 RFC 3376 IGMP v3 RFC 2710 MLD v1 FRC 3810 MLD v2 RFC 2328 OSPF v2 ITU-T G.8032 ERPS Ring ITU-T Y.1731 Performance Monitoring |
