Артикул:

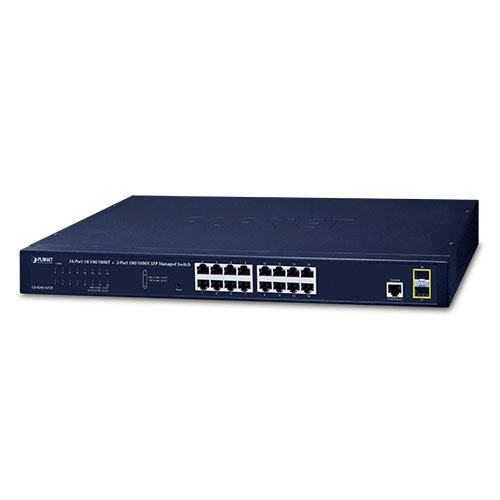

GS-4210-16T2S
| Hardware Specifications | |
|---|---|
| Hardware Version | 2 |

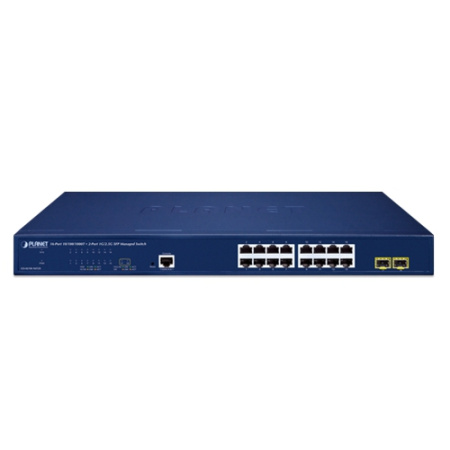

| Copper Ports | 16 x 10/100/1000BASE-T RJ45 auto-MDI/MDI-X ports |
| SFP/mini-GBIC Slots | 2 100/1000BASE-X SFP interfaces, supporting 100/1000Mbps dual mode |
| Console | 1 x RS232-to-RJ45 serial port (115200, 8, N, 1) |
| Reset Button | System factory default |
| Switch Architecture | Store-and-Forward |
| Switch Fabric | 36Gbps/non-blocking |
| Switch Throughput@64 bytes | 26.7Mpps @64 bytes |
| MAC Address Table | 8K entries |
| Shared Data Buffer | 4.1 megabits |
| Flow Control |
IEEE 802.3x pause frame for full-duplex Back pressure for half-duplex |
| Jumbo Frame | 9216 bytes |
| Reset Button | > 5 sec: Factory default |
| LED |
System: Power (Green) 10/100/1000T RJ45 Interfaces (Port 1 to Port 16): 1000 LNK/ACT (Green), 10/100 LNK/ACT (Orange) 100/1000Mbps SFP Interfaces (Port 17 to Port 18): 1000 LNK/ACT (Green), 100 LNK/ACT (Orange) |
| Power Requirements | 100~240V AC, 50/60Hz, 0.8A (max.) |
| Power Consumption/Dissipation | Max. 10.4 watts/35 BTU |
| Dimensions (W x D x H) | 445 x 207 x 45 mm (1U height) |
| Weight | 2kg |
| ESD Protection | Yes |
| Enclosure | Metal |
| Layer 2 Functions | |
| Port Mirroring |
TX/RX/both Many-to-1 monitor |
| VLAN |
802.1Q tagged-based VLAN Up to 256 VLAN groups, out of 4094 VLAN IDs 802.1ad Q-in-Q tunneling (VLAN stacking) Voice VLAN Protocol VLAN Private VLAN (Protected port) GVRP Management VLAN |
| Link Aggregation |
IEEE 802.3ad LACP and static trunk Supports 8 groups of 8-port trunk |
| Spanning Tree Protocol |
IEEE 802.1D Spanning Tree Protocol (STP) IEEE 802.1w Rapid Spanning Tree Protocol (RSTP) IEEE 802.1s Multiple Spanning Tree Protocol (MSTP) STP BPDU Guard, BPDU Filtering and BPDU Forwarding |
| IGMP Snooping |
IPv4 IGMP (v2/v3) snooping IGMP querier Up to 256 multicast groups |
| MLD Snooping | IPv6 MLD (v1/v2) snooping, up to 256 multicast groups |
| Access Control List |
IPv4/IPv6 IP-based ACL/MAC-based ACL IPv4/IPv6 IP-based ACE/MAC-based ACE |
| QoS |
8 mapping IDs to 8 level priority queues - Port number - 802.1p priority - DSCP/IP precedence of IPv4/IPv6 packets Traffic classification based, strict priority and WRR Ingress/Egress Rate Limit per port bandwidth control |
| Security |
IEEE 802.1X port-based authentication Built-in RADIUS client to co-operate with RADIUS server RADIUS/TACACS+ authentication IP-MAC port binding MAC filtering Static MAC address DHCP snooping and DHCP Option82 STP BPDU guard, BPDU filtering and BPDU forwarding DoS attack prevention ARP inspection IP source guard Storm control support Broadcast/unknown unicast/unknown multicast |
| Management Functions | |
| Basic Management Interfaces |
RJ45 Console; Web browser; Telnet; SNMP v1, v2c, v3 Firmware upgrade by HTTP/TFTP protocol through Ethernet network Configuration upload/download through HTTP/TFTP Remote/Local Syslog System log LLDP Protocol SNTP PLANET Smart Discovery Utility |
| Secure Management Interfaces | HTTPs, SNMP v3 |
| SNMP MIBs |
RFC 3635 Ethernet-like MIB RFC 2863 Interface Group MIB RFC 2819 RMON (1, 2, 3, 9) RFC 1493 Bridge MIB |
| Standards Conformance | |
| Regulatory Compliance | FCC Part 15 Class A, CE |
| Standards Compliance |
IEEE 802.3 10BASE-T IEEE 802.3u 100BASE-TX/100BASE-FX IEEE 802.3z Gigabit SX/LX IEEE 802.3ab Gigabit 1000BASE-T IEEE 802.3x flow control and back pressure IEEE 802.3ad port trunk with LACP IEEE 802.1D Spanning Tree Protocol IEEE 802.1w Rapid Spanning Tree Protocol IEEE 802.1s Multiple Spanning Tree Protocol IEEE 802.1p Class of Service IEEE 802.1Q VLAN Tagging IEEE 802.1x Port Authentication Network Control IEEE 802.1ab LLDP RFC 768 UDP RFC 793 TFTP RFC 791 IP RFC 792 ICMP RFC 2068 HTTP RFC 1112 IGMP version 1 RFC 2236 IGMP version 2 RFC 3376 IGMP version 3 RFC 2710 MLD version 1 RFC 3810 MLD version 2 |
| Environment | |
| Operating |
Temperature: 0 ~ 50 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
| Storage |
Temperature: -10 ~ 70 degrees C Relative Humidity: 5 ~ 95% (non-condensing) |
