Артикул:
V-M422C

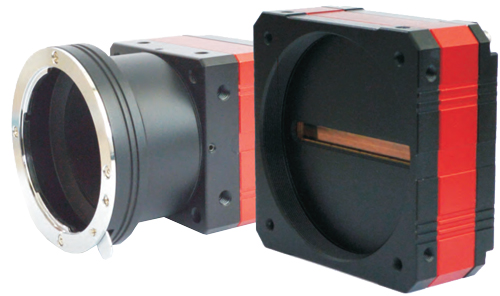

Model (Mono) | LV-M422C |
Image sensor | DR-2X2K-7-LCC |
Pixel number | 2,048 x 2 |
Sensor size | Linear CMOS |
Pixel size (m) | 7 x 7 |
Max. Line rates | 141KHz |
Video output type | CameraLinkTM |
Pixel clock | 80MHz |
Gain | 0~19dB |
Lens mount | C/F Mount |
Pixel Data Format | mono 8/10/12 |
Gamma | LUT |
Digital I/F | CameraLink Base,Medium |
Power requirement | 12VDC ± 10%, PoCL |
Connector | SDR x 2/6pin Circular (Power Only) |
Serial I/F | RS-232C |
Temperature | 0C ~ 45C |
Operating humidity | Humidity 20% to 80% Non-Condensation |
Housing(W x H x L) | 50mm x 50mm x 40mm |
Power consumption | < 2.8W |
Weight | < 188g |
Alignment accuracy | de:<±0.2° |
Conformity | CE, RoHS |
Warranty | 3 years |
