Артикул:

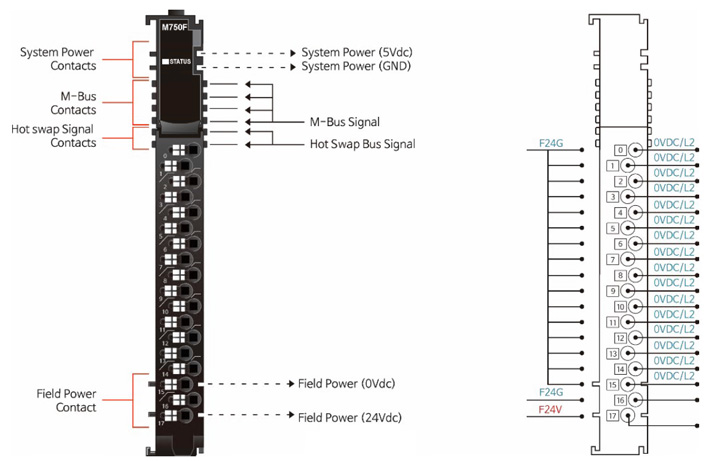

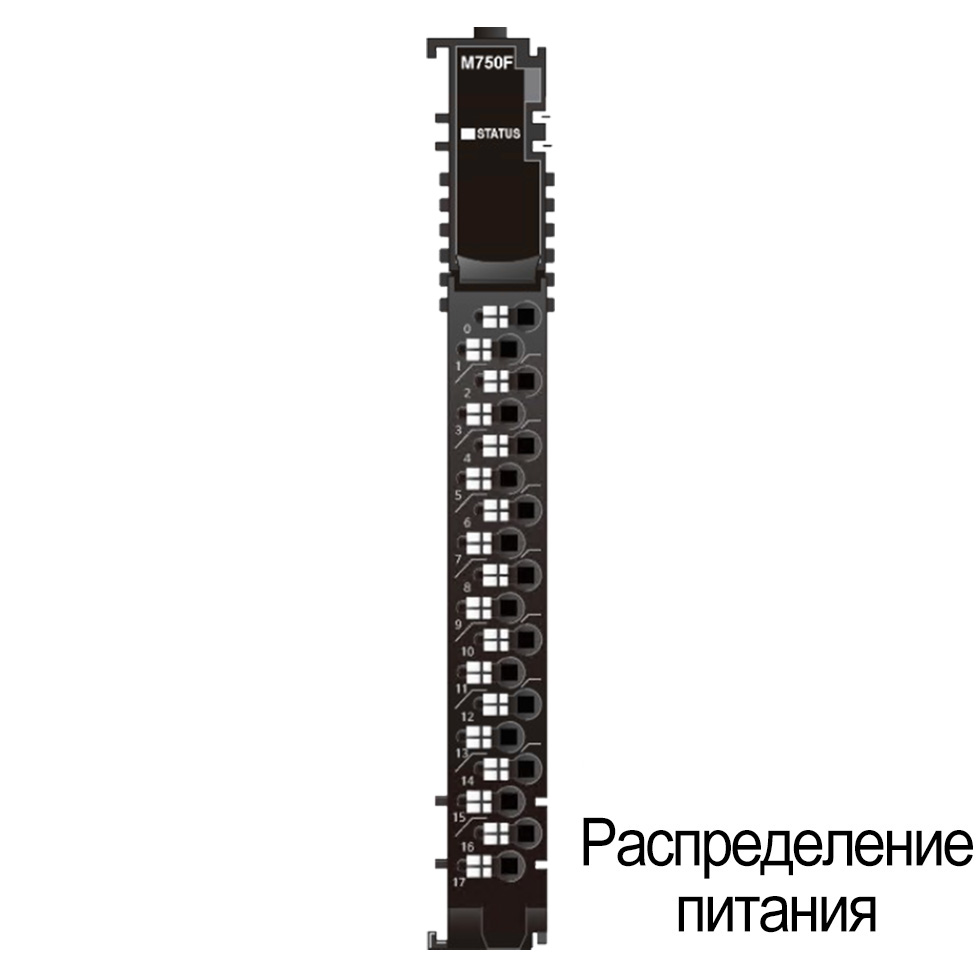

M750F
| UL field power | Supply voltage : 24Vdc nominal, Class 2 |
| Field power voltage | 24Vdc nominal |
| Field power contacts current | Max. 10A |
| Operating temperature |
-25℃~50℃ : Max. 10A 50℃~60℃ : Max. 9A |
| Indicator | 1 Green Internal Bus Status |
| System power dissipation | Max. 30mA @ 5Vdc (M750F only) |
| Single Wiring | 0.205㎟ - 1.3㎟ (24-16 AWG) |
| Torque | 0.8Nm(7 lb-in) |
| Weight | 72g |
| Module size | 12mm x 110mm x 75mm |
| Hot swap | Possible |
| Operation Temperature | -25℃~60℃ |
| UL Temperature | -25℃~60℃ |
| Storage Temperature | -40℃~85℃ |
| Relative Humidity | 5% ~ 90% Non-condensing |
| Mounting | DIN Rail |
| General Specification | |
| Shock Operating | IEC 60068-2-27 |
| Vibration Resistance |
Based on IEC 60068-2-6 DNVGL-CG-0039 : Vibration Class B, 4g |
| Industrial Emissions | EN61000-6-4/All : 2011 |
| Industrial Immunity | EN 61000-6-2 : 2005 |
| Installation Position | Vertical and horizontal installation is available. |
Руководство по эксплуатации
Руководство по эксплуатации, Модули питания M7xxx, M-серия.pdf / PDF 1.66MB
