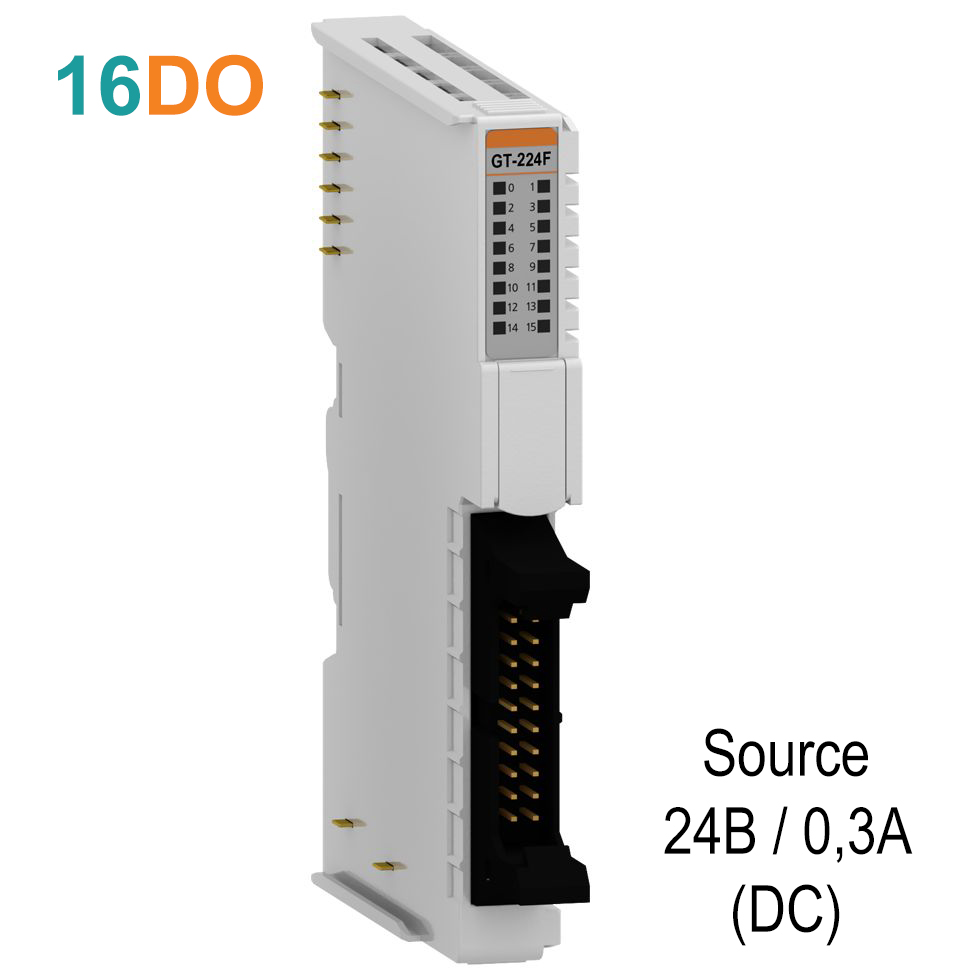

Output per module |
16 points source type |
|
Indicators |
16 green output status |
|
Output voltage range |
24Vdc nominal |
|
On-state voltage drop |
3.00Vdc @ 2A (TBD) |
|
On-state min. current |
Min. 1mA |
|
Off-state leakage current |
Max. 3uA (TBD) |
|
Output signal delay |
OFF to ON : Max. 0.9ms (TBD) |
|
Output current rating |
Max. 0.3A per channel / Max. 3.6A per unit |
|
Protection(1) |
None |
|
Common type |
16 points / 2 COM |
|
General specification |
|
|
Power dissipation |
Max. 50mA @ 5Vdc (TBD) |
|
Isolation |
I/O to Logic : photocoupler isolation Field power : non-isolation |
|
UL field power |
Supply voltage : 24Vdc nominal, Class 2 |
|
Field power |
Supply voltage : 24Vdc nominal Voltage range : 15~30Vdc |
|

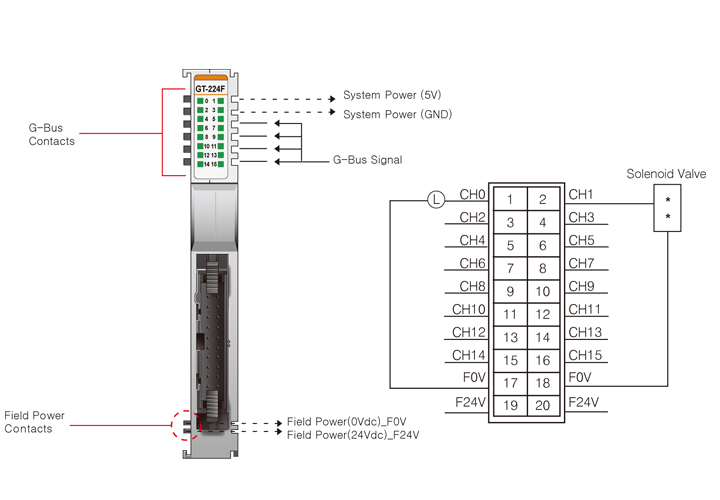

Single Wiring |
Module connector : HIF3BA-20D-2.54R |
|
Weight |
52g |
|
Module size |
12mm x 99mm x 70mm |
