Артикул:

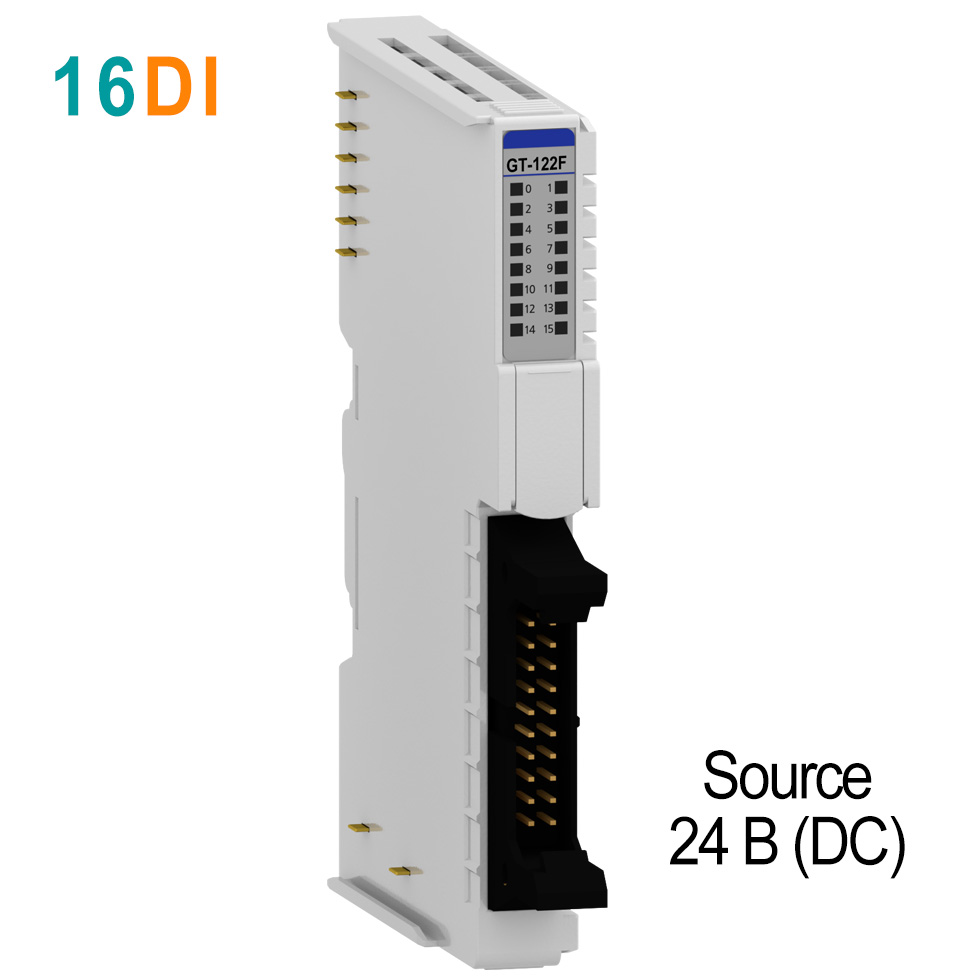

GT-122F
|
Input per module |
16 points Source type |
| Indicators | 16 green input status |
| ON–state voltage |
24V dc nominal |
| ON-state current |
2.25mA @ 24Vdc 3mA @ 30Vdc |
| OFF-state voltage | 9.3Vdc @ 25℃ |
| Input signal delay |
OFF to ON : Max. 0.3ms ON to OFF : Max. 0.3ms |
| Input filter | Adjustable, up to 10ms |
| Nominal input impedance | 10.2K ohm typical |
| Common type | 16 points / 2 COM |
| General Specification | |
| Power dissipation | Max. 50mA @ 5Vdc |
| Isolation | I/O to Logic : photocoupler isolation |
| UL field power | Supply voltage : 24Vdc nominal, Class 2 |
| Field power |
Supply Voltage : 24Vdc nominal Voltage Range : 15 ~ 30Vdc Power dissipation : 0mA @ 24Vdc |

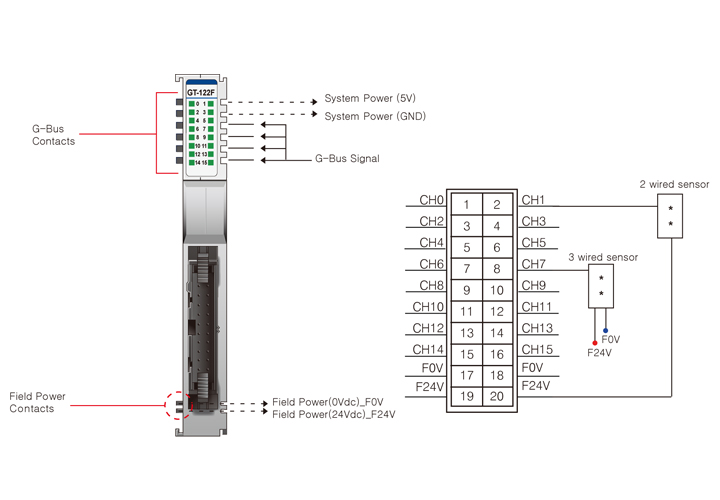

| Wiring |
Connector Type, up to AWG22 Module Connector :HIF3BA-20D-2.54DSA |
| Weight | 52g |

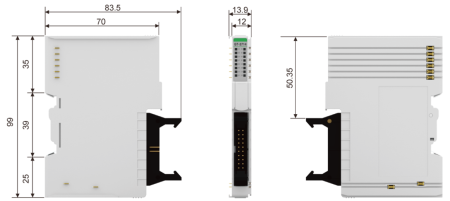

| Module Size | 12mm x 99mm x 70mm |
1/1
—
Серия
Серия G
Тип модуля
Дискретный ввод
Количество каналов
16
Тип разъема
IDC 20
Тип подключения
1-проводное (Source)
Горячая замена
?
Hot backup
Не поддерживается
Резервирование
Не поддерживается
