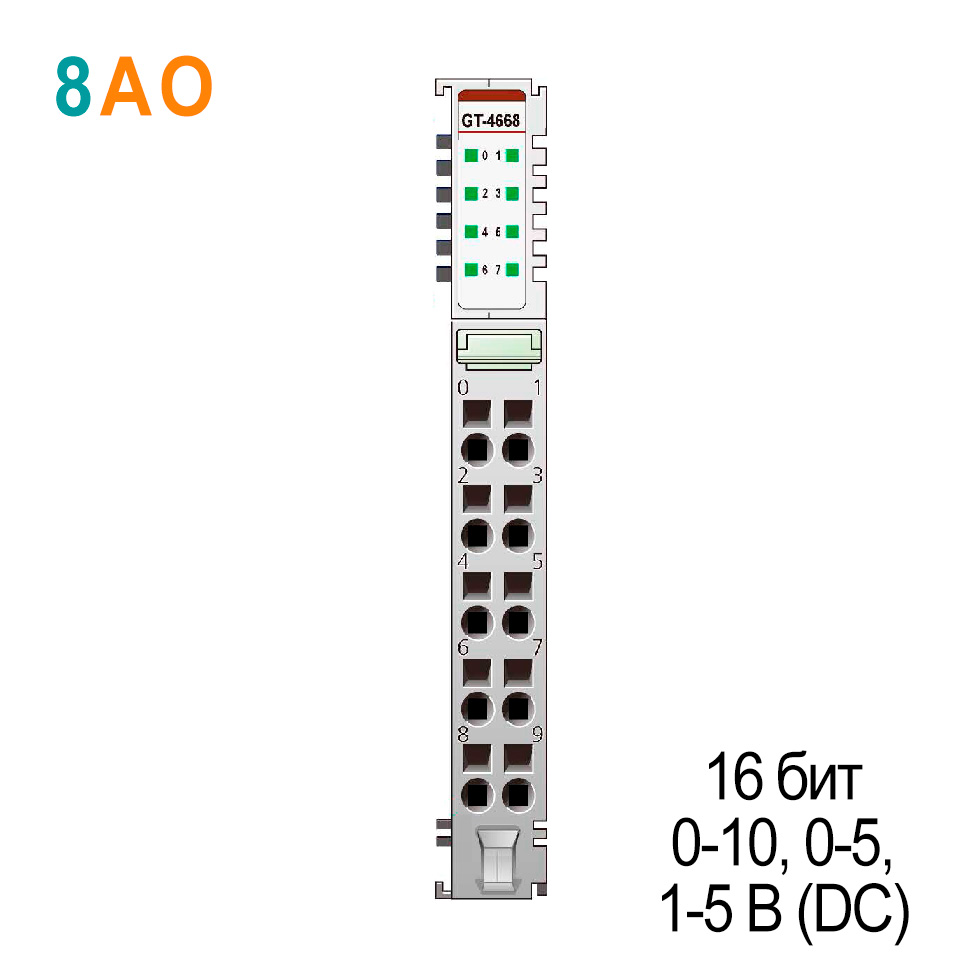

Output Specification |
|
|
Outputs per module |
8 Channels single ended, non-isolated between channel |
|
Indicators(Logic side ) |
8 Green Output status |
|
Resolution in Ranges * |
16 bit (Include Sign) 15bits : 0.31mV/Bit(0~10V) 15bits : 0.15mV/Bit(0~5V) 15bits : 0.12mV/Bit(1~5V) |
|
16 bit (Full-Range) 16bits : 0.15mV/Bit(0~10V) 16bits : 0.076mV/Bit(0~5V) 16bits : 0.061mV/Bit(1~5V) |
|
|
Output Range |
0 ~ 10Vdc, 0~5Vdc, 1~5Vdc |
|
Data Format * |
Include Sign 16bit : 16bits Integer (2' compliment) |
|
Full-Range 16bit : Unsigned Straight Binary |
|
|
Module Error |
±0.1% Full Scale @ 25℃ ±0.3% Full Scale @ -40°C, 60℃ |
|
Load Resistance |
Min. 2KΩ |
|
Conversion Time |
0.3msec / All channel |
|
Diagnostic |
Field Power Off: LED Blinking |
|
Calibration |
Not Required |
|

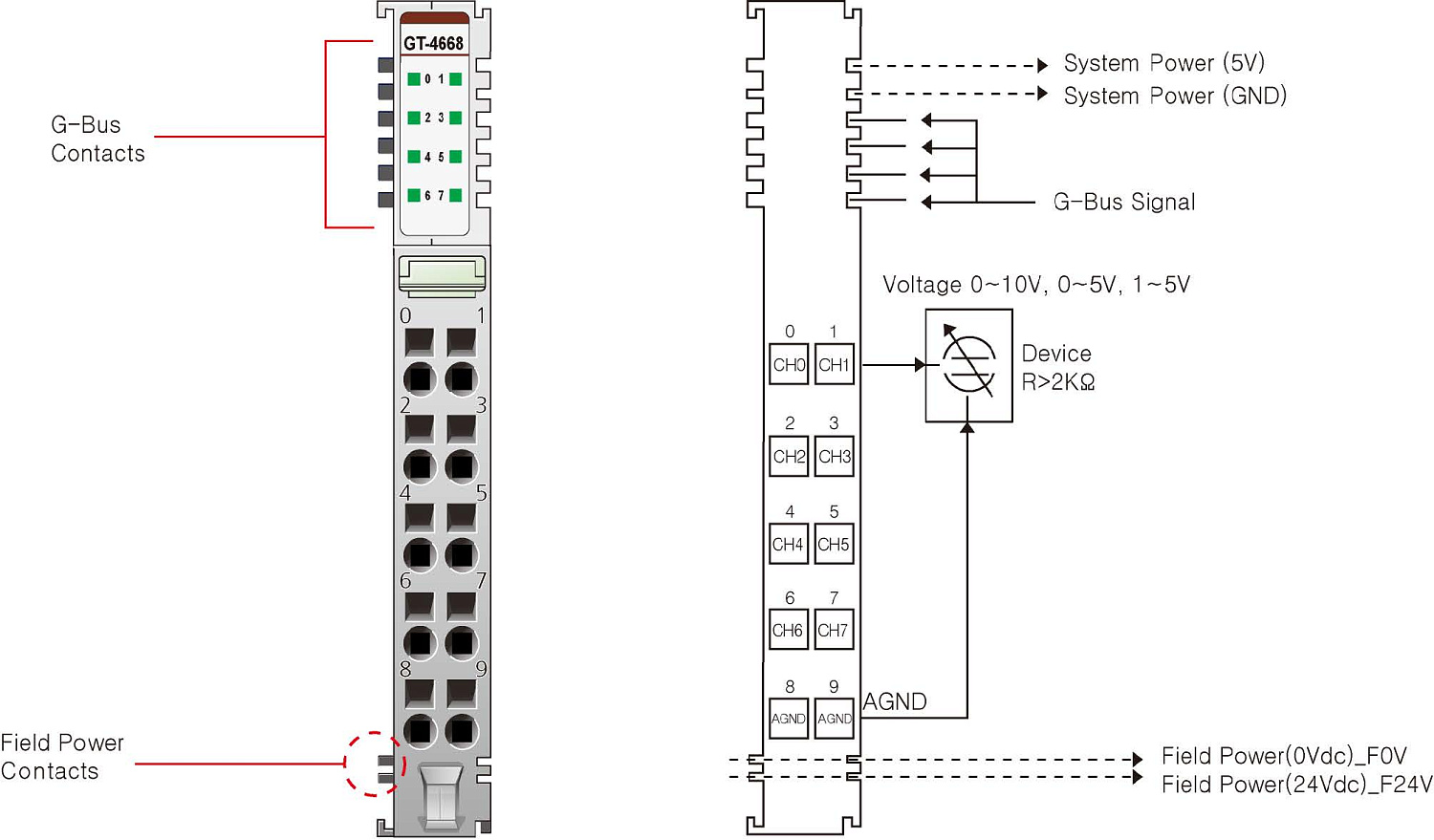

Common Type |
2 Common, Field Power 0V is Common(AGND) |
|
General Specification |
|
|
Power dissipation |
Max. 30mA @ 5Vdc |
|
Isolation |
I/O to Logic : Isolation Field power : Non-Isolation |
|
UL Field Power |
Supply voltage : 24Vdc nominal, Class2 |
|
Field Power |
Supply Voltage : 24Vdc nominal Voltage Range : 18~30Vdc Power Dissipation : Max. 70mA @ 24Vdc |
|
Wiring |
I/O Cable Max. 2.0mm2(AWG 14) |
|
Weight |
58g |
|
Module Size |
12mm x 99mm x 70mm |
|
2.1. GT-5001 (1ch Loadcell + 4ch DI + 4ch DO + 1ch ModbusRTU) |
|
|
Items |
|
|
Resistor bridge input specification |
|
|
Number of channels |
1 channels, Strain gauge input |
|
Input type |
Resistor bridge, Strain gauge |
|
Indicators |
Error_Sig.voltage / Error_Ref.voltage 2 Green LED |
|
Input range VSIG |
-150mV ~ +150mV |
|
Input range VREF |
0 ~10V |
|
Interanl resistance |
> 1 MΩ (VSIG, VREF) |
|
Measuring error |
VSIG : >< ±0.1% Full Scale @ 25℃ ambient >< ±0.3% Full Scale @ -40 ~ 60℃ ambient VREF : >< ±0.1% Full Scale @ 25℃ ambient >< ±0.3% Full Scale @ -40 ~ 60℃ ambient |
|
Resolution |
24bit, 32bit presentation |
|
Conversion time |
Max. 0.55ms |
|
Filter |
Max. 64 samples filtering, parameterisable |
|
Special features |
Open load check, Tare, 5VDC bridge supply |
|
Bridge supply specification (Power) |
|
|
Voltage source |
5V dc nominal * |
|
Current rate |
Max. 30mA |
|
Digital input specification |
|
|
Inputs per module |
4 points Sink type |
|
Indicators |
4 green input status |
|
On–state voltage |
24Vdc nominal (≤ Field Power) 14Vdc ~ 28.8Vdc @ 60℃ |
|
On-state current |
4.0mA @ 24Vdc 4.8mA @ 28.8Vdc |
|
Off-state voltage |
12.5Vdc @ 25℃ |
|
Input signal delay |
OFF to ON : Max. 0.4ms ON to OFF : Max. 0.5ms |
|
Input filter |
Adjustable, up to 10ms |
|
Nominal input impedance |
5.9K ohm typical |
|
Digital Output specification |
|
|
Output per module |
4 points source type |
|
Indicators |
4 green output state |
|
Output voltage range |
24Vdc nominal Min. 18Vdc ~ Max. 28.8Vdc |
|
On-state voltage drop |
0.3Vdc @ 25℃ 0.5Vdc @ 60℃ |
|
On-state min. current |
Min. 1mA |
|
Off-state leakage current |
Max. 10uA |
|
Output signal delay |
OFF to ON : Max.0.3ms ON to OFF : Max.0.3ms |
|
Output current rating |
Max. 0.5A per channel / Max. 2A per unit |
|
Protection |
Over current limit : Min 12A@ 25℃ per each channels Thermal shutdown : Typical. 175℃ Short circuit protection |
|
ModbusRTU Specification |
|
|
Type |
Slave node (RS485 for MODBUS RTU) |
|
Baud Rate |
1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps |
|
Indicator |
2 LED 1 Green, Receive Data (RXD) 1 Green, Transmit Data (TXD) |
|
General specification |
|
|
Power dissipation |
Max. 55mA @ 5Vdc |
|
Isolation |
I/O to Logic : Photocoupler Isolation Field power : Non-Isolation |
|
UL Field Power |
Supply Voltage : 24Vdc nominal, Class 2 |
|
Field Power |
Supply Voltage : 24Vdc nominal Voltage Range : 18Vdc ~ 28.8Vdc Power Dissipation : Max. 45mA @ 24Vdc |
|
Wiring |
I/O Cable Max. 0.823mm2(AWG 18) |
|
Weight |
63g |
|
Module Size |
12mm x 109mm x 70mm |
|
Environment Condition |
Refer to ‘Environment Specification’ |
|
>* Voltage drop occurs depending on the specifications of the cable and load of the voltage source.(Max 0.7V) >* Load cell signals have low voltage levels and are very sensitive the system environment. - It is recommended to install GT-7151/GT-7851 according to the system environment. |
|
|
3.1. GT-5002 (4ch AI + 4ch DI + 4ch DO + 1ch ModbusRTU) |
|
|
Items |
|
|
Analog input specification |
|
|
Inputs per module |
4 Channels single ended, non-isolated between channel |
|
Indicators |
4 Green Input status |
|
Resolution in Ranges |
16 bits (Include Sign) 15 bits : 0.31mV/Bit(0~10V) 15 bits : 0.15mV/Bit(0~5V) 15 bits : 0.12mV/Bit(1~5V) |
|
Data Format |
16bits Integer (2's complement) |
|
Module Error |
±0.1% Full Scale @ 25℃ ±0.3% Full Scale @ -40℃, 60℃ |
|
Input Impedance |
470kΩ |
|
Diagnostic |
Diagnostic Field Power Off : LED Blinking Field Power On : LED Off < 2% (Maximum Input Value) Field Power On : LED On > 2% (Maximum Input Value) |
|
Conversion Time |
0.6msec / All channels |
|
Filter |
Max. 64 samples filtering, parameterisable |
|
Common Type |
2 Common, AGND |
|
Digital input specification |
|
|
Inputs per module |
4 points Sink type |
|
Indicators |
4 green input status |
|
On–state voltage |
24Vdc nominal (≤ Field Power) 14Vdc ~ 28.8Vdc @ 60℃ |
|
On-state current |
4.0mA @ 24Vdc 4.8mA @ 28.8Vdc |
|
Off-state voltage |
12.5Vdc @ 25℃ |
|
Input signal delay |
OFF to ON : Max. 0.4ms ON to OFF : Max. 0.5ms |
|
Input filter |
Adjustable, up to 10ms |
|
Nominal input impedance |
5.9K ohm typical |
|
Digital Output specification |
|
|
Output per module |
4 points source type |
|
Indicators |
4 green output state |
|
Output voltage range |
24Vdc nominal Min. 18Vdc ~ Max. 28.8Vdc |
|
On-state voltage drop |
0.3Vdc @ 25℃ 0.5Vdc @ 60℃ |
|
On-state min. current |
Min. 1mA |
|
Off-state leakage current |
Max. 10uA |
|
Output signal delay |
OFF to ON : Max.0.3ms ON to OFF : Max.0.3ms |
|
Output current rating |
Max. 0.5A per channel / Max. 2A per unit |
|
Protection |
Over current limit : Min 12A@ 25℃ per each channels Thermal shutdown : Typical. 175℃ Short circuit protection |
|
ModbusRTU Specification |
|
|
Type |
Slave node (RS485 for MODBUS RTU) |
|
Baud Rate |
1200, 2400, 4800, 9600, 19200, 38400, 57600, 115200 bps |
|
Indicator |
2 LED 1 Green, Receive Data (RXD) 1 Green, Transmit Data (TXD) |
|
General specification |
|
|
Power dissipation |
Max. 55mA @ 5Vdc |
|
Isolation |
I/O to Logic : Photocoupler Isolation Field power : Non-Isolation |
|
UL Field Power |
Supply Voltage : 24Vdc nominal, Class 2 |
|
Field Power |
Supply Voltage : 24Vdc nominal Voltage Range : 18Vdc ~ 28.8Vdc Power Dissipation : Max. 45mA @ 24Vdc |
|
Wiring |
I/O Cable Max. 0.823mm2(AWG 18) |
|
Weight |
63g |
|
Module Size |
12mm x 109mm x 70mm |
