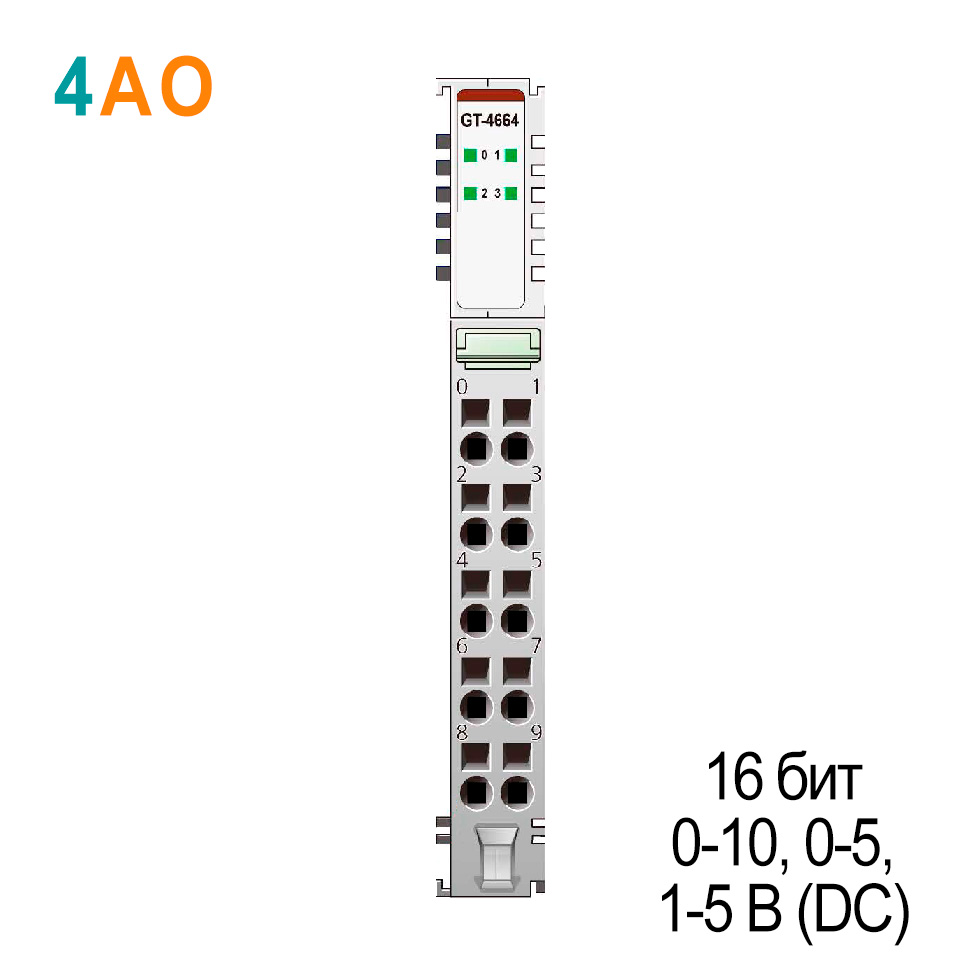

Output Specification |
|
|
Outputs per module |
4 Channels single ended, non-isolated between channel |
|
Indicators(Logic side ) |
4 Green Output status |
|
Resolution in Ranges * |
16 bit (Include Sign) 15bits : 0.31mV/Bit(0~10V) 15bits : 0.15mV/Bit(0~5V) 15bits : 0.12mV/Bit(1~5V) |
|
16 bit (Full-Range) 16bits : 0.15mV/Bit(0~10V) 16bits : 0.076mV/Bit(0~5V) 16bits : 0.061mV/Bit(1~5V) |
|
|
Output Range |
0 ~ 10Vdc, 0~5Vdc, 1~5Vdc |
|
Data Format * |
Include Sign 16bit : 16bits Integer (2' compliment) |
|
Full-Range 16bit : Unsigned Straight Binary |
|
|
Module Error |
±0.1% Full Scale @ 25℃ ±0.3% Full Scale @ -40°C, 60℃ |
|
Load Resistance |
Min. 2KΩ |
|
Conversion Time |
0.15msec / All channel |
|
Diagnostic |
Field Power Off: LED Blinking |
|
Calibration |
Not Required |
|

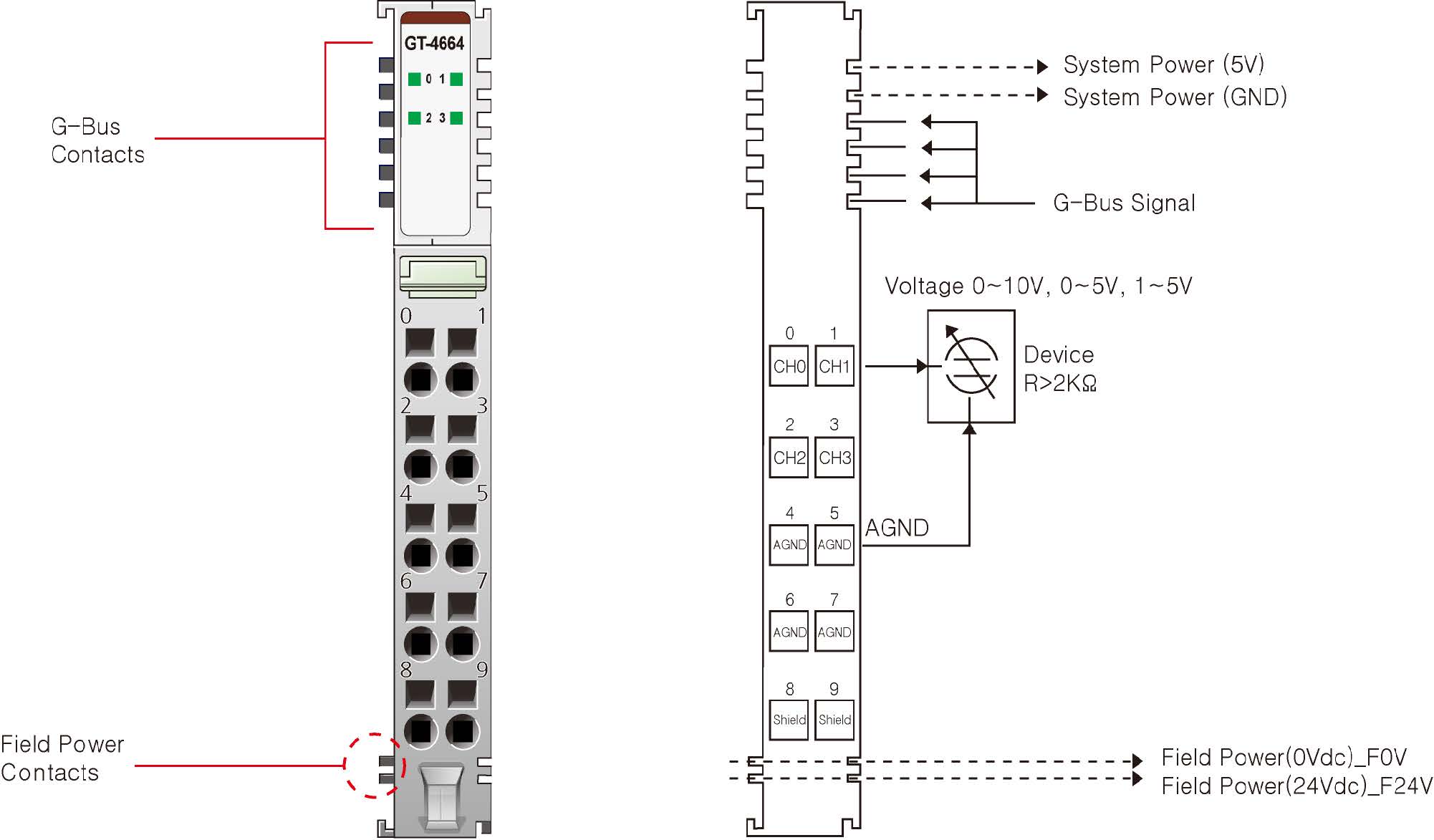

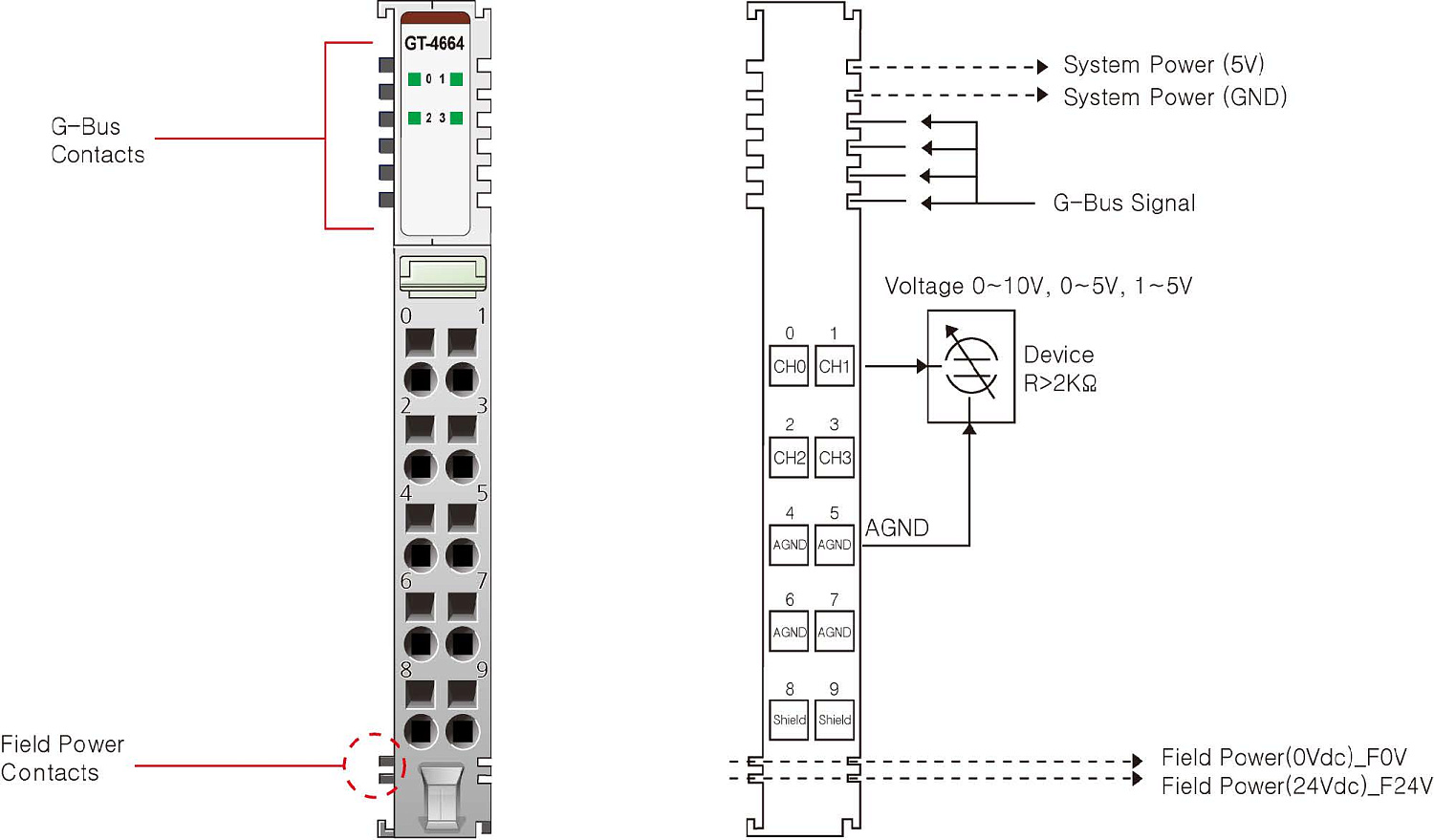

Common Type |
4 Common, Field Power 0V is Common(AGND) |
|
General Specification |
|
|
Power dissipation |
Max. 30mA @ 5Vdc |
|
Isolation |
I/O to Logic : Isolation Field power : Non-Isolation |
|
UL Field Power |
Supply voltage : 24Vdc nominal, Class2 |
|
Field Power |
Supply Voltage : 24Vdc nominal Voltage Range : 18~30Vdc Power Dissipation : Max. 35mA @ 24Vdc |
|
Wiring |
I/O Cable Max. 2.0mm2(AWG 14) |
|
Weight |
58g |
|
Module Size |
12mm x 99mm x 70mm |
