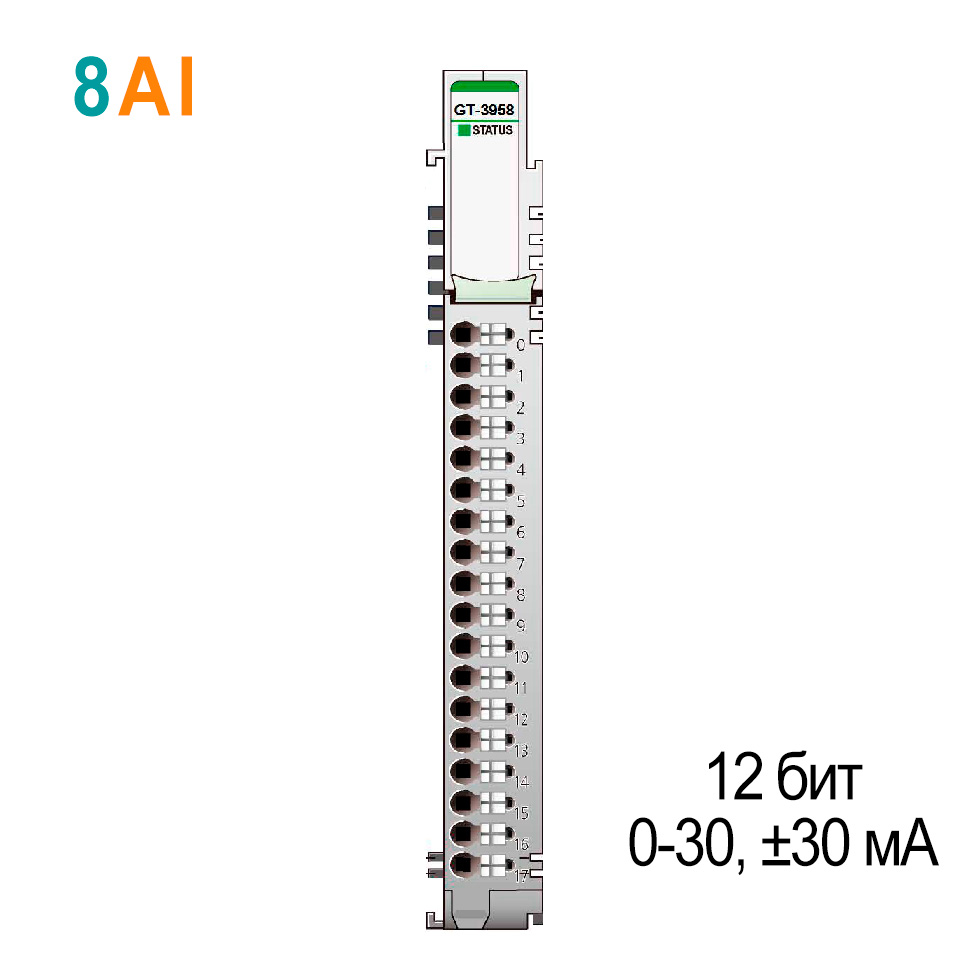

Input Specification |
|
|
Inputs Per Module |
8 Channels Differential, non-isolated between channel |
|
Indicators |
1 Green G-Bus status |
|
Resolution in Ranges |
12 bits : 7.32uA/bit(0~30mA) 12 bits : 14.65uA/bit(-30~30mA) |
|
Input Range |
0~30mA, -30~30mA |
|
Data Format |
16bits Integer (2' compliment) |
|
Module Error |
±0.1% Full Scale @ 25℃ ±0.3% Full Scale @ -40℃, 60℃ |
|
Input Impedance |
80Ω |
|
Conversion Time |
2.2msec / All channel |
|
Calibration |
Not Required |
|
General Specification |
|
|
Power Dissipation |
Max. 250mA @ 5Vdc |
|
Isolation |
I/O to Logic : Photocoupler Isolation Field power : Not Connected |
|
UL Field Power |
Supply Voltage : 24Vdc nominal, Class 2 |
|
Field Power |
Not used, Field power bypass to next expansion module |
|

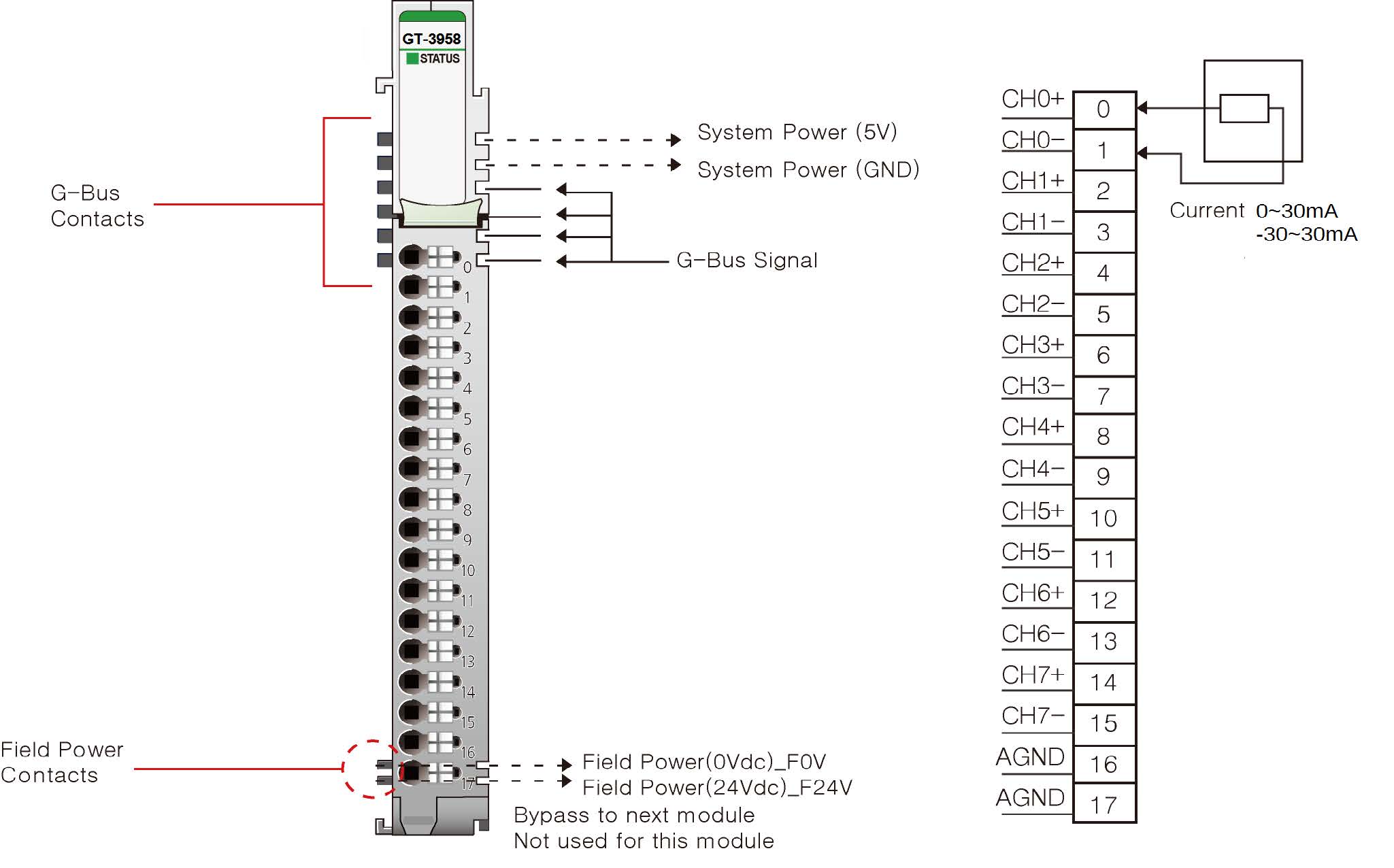

Single Wiring |
I/O Cable Max. 0.823mm2(AWG 18) |
|
Weight |
63g |
|
Module Size |
12mm x 109mm x 70mm |
