Артикул:
GT-3758
Main features
- Various type of protocols (MODBUS TCP , EtherNet IP , PROFINET , EtherCAT , CC-Link IE , CC-Link IE Field Basic , DeviceNet , PROFIBUS , MODBUS RS485, CC-Link , CanOpen , BACnet ,MODBUS RTU)- More than 90 different I/Os (Universal type of Digital Input module, 32 points slice I/O module, ERNI type connector input/output module)
- Space-saving, compact size & slice type for the module expansion
- Easy and convenient working environment for the operator when wiring and install

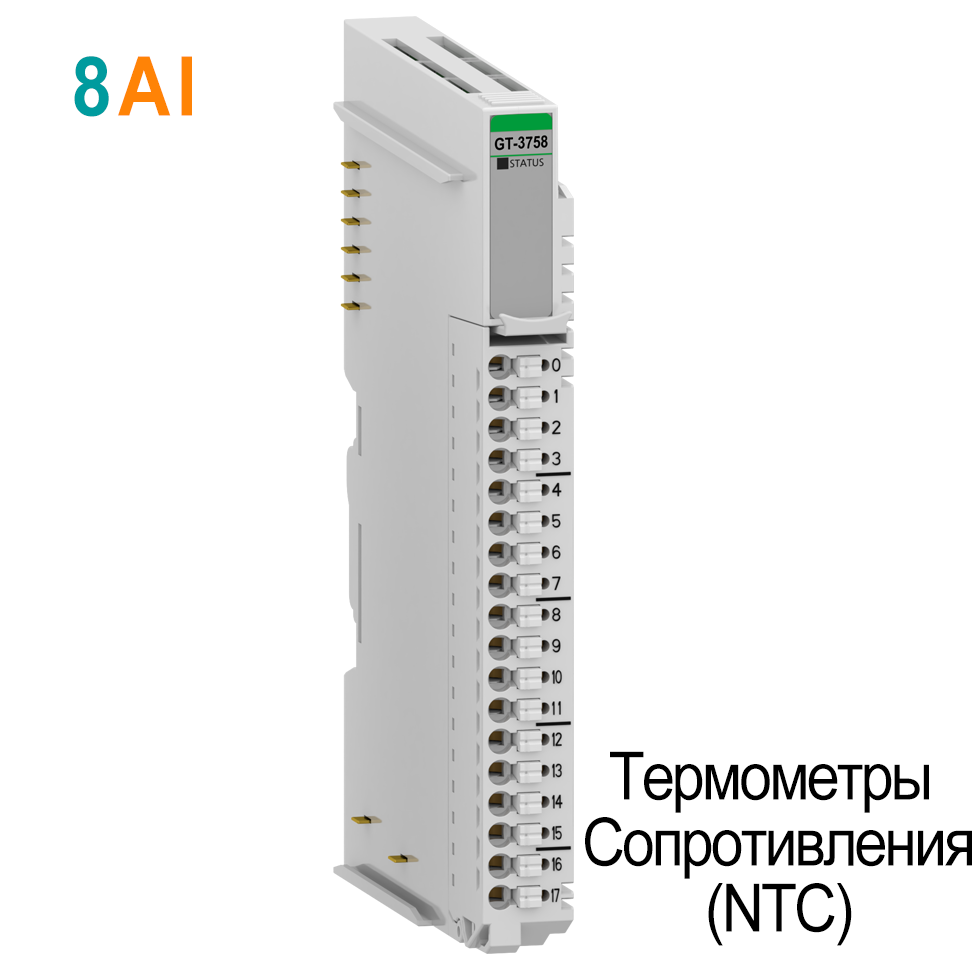

| GT-3758 (8 CHANNELS NTC 10K INPUT) | |||||||||||||
| Input Specification | |||||||||||||
|
Inputs Per Module |
8 Channels | ||||||||||||
| Indicators(Logic side ) | 8 Green Input status | ||||||||||||
| Sensor Types |
NTC Input Range
|
||||||||||||

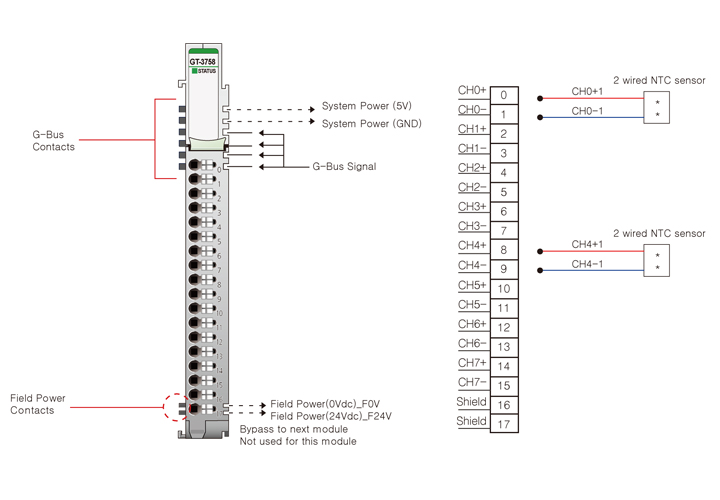

| Connection Method | 2-Wire | ||||||||||||
| Conversion Time | < 4msec / All channel | ||||||||||||
| Data Format | 16bits signed Integer (2' complement ) | ||||||||||||
| Module Accuracy |
All Sensor type Input Range • ±1℃ Full Scale @ 25℃ ambient • ±2℃ Full Scale @ -40℃~70℃ Registor type Input Range • ±0.1% Full Scale at 0~100Kohm @ 25℃ ambient • ±0.5% Full Scale at 100~300Kohm @ 25℃ ambient |
||||||||||||
| Resolution of Data | NTC Type : ±0.1℃ / F | ||||||||||||
| Calibration | Not Required | ||||||||||||
| Diagnostic | Sensor open or range over, then conversion data = 0x8000(-32768) | ||||||||||||
| General Specification | |||||||||||||
| Power dissipation | Max. 120mA @ 5.0Vdc | ||||||||||||
| Isolation |
I/O to Logic : Isolation Field power : Not Connected |
||||||||||||
| UL Field Power | Supply voltage : 24Vdc nominal, Class2 | ||||||||||||
| Field Power | Not used, Field power bypass to next expansion module | ||||||||||||
| Single Wiring | I/O Cable Max. 0.75mm²(AWG 18) | ||||||||||||
| Weight | 64g | ||||||||||||
| Module Size | 12mm x 109mm x 70mm | ||||||||||||
