Артикул:

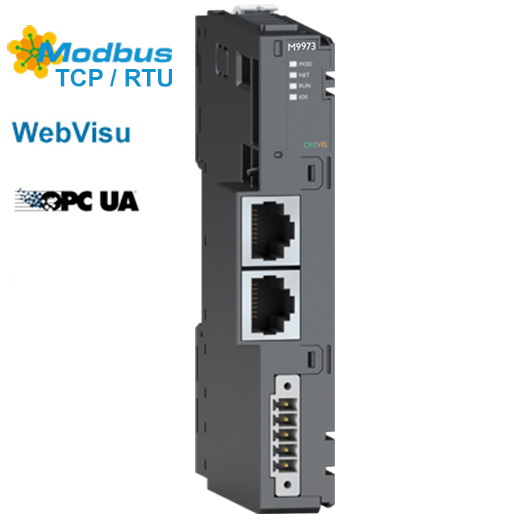

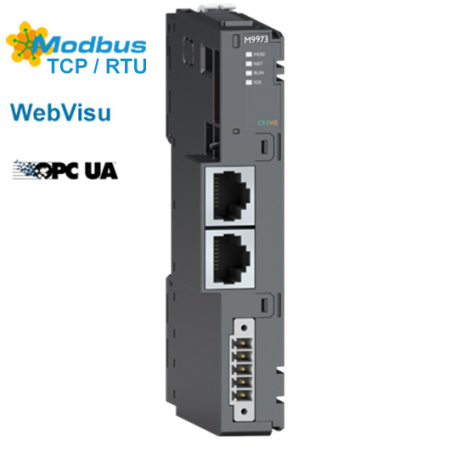

ML9973
| Items | Specification | |||||
| ML9971 | ML9972 | ML9973 | ||||
|
Programming (CODESYS) |
V3.5.17.3 | |||||
| Program Memory | 512 Kbytes | 16 Mbytes | ||||
| Data Memory | 96 Kbytes | 16 Mbytes | ||||
|
IO Input: %IW0 ~%IW2047 (2048 words) IO Output: %QW0 ~%QW2047 (2048 words) Memory: %MW0 ~ %MW8191 (8192 words) |
||||||
| Non-Volatile Memory |
4 Kbytes |
32 Kbytes | ||||
|
Retain:2 Kbytes Persistent Retain: 2 Kbytes |
Retain: 16 Kbytes Persistent Retain: 16 Kbytes |
|||||
| Run-Time System | Multiple PLC Tasks | |||||
| Program Languages | IEC 61131-3 (LD, IL, ST, FBD, SFC) | |||||
| MQTT* | X | X | ||||
| MQTT_Sparkplug B |
|
X | ||||
| SSL/TLS |
|
|
||||
| User management** |
|
X | ||||
| SNMP | X | X | ||||
| OPC DA Server |
|
X | ||||
| OPC UA Server & Client |
|
X | ||||
| Online Change |
|
X | ||||
| Source Upload/Download |
|
X | ||||
| File system |
|
X | ||||
| File transmit |
|
X | ||||
| TFTP |
|
X | ||||
| SQL4CODESYS |
|
X | ||||
| Breakpoint |
|
X | ||||
| Webvisualization*** |
|
|
X | |||
| RTC**** |
Retain Time : < 15 day / Accuracy : < 2min/month (Status : fully recharged battery at room temperature) |
|||||
| Max. Task |
10 |
|||||
| Max. Cycle Task | 10 | |||||
| Max. Status Task | 10 | |||||
| Process Time | 0.0186us | 0.1648usec | ||||
| General Specification | ||||||
|
60mA typical @ 24Vdc | |||||
| 50mA typical @ 24Vdc | ||||||
| UL System Power |
Supply voltage: 24Vdc nominal, Class 2 |
|||||
| System Power |
Supply voltage: 24Vdc nominal |
|||||
| UL Field Power | Supply voltage: 24Vdc nominal, Class 2 | |||||
| Field Power |
Supply voltage: 24Vdc typical (Max. 30Vdc) |
|||||
| Max. Current Field Power Contact | Max. DC 8A | |||||
| Wiring | I/O Cable Max. 2.0mm2(AWG 14) | |||||
| Torque | 0.8 Nm(7 lb-in) | |||||
| Current for Expansion Module | 1.0A @ 5Vdc | |||||
| Isolation |
System power to internal logic : Non-isolation |
|||||
| Weight | 84g | |||||
| Module Size | 17.5mm x 110mm x 75mm | |||||
