Артикул:

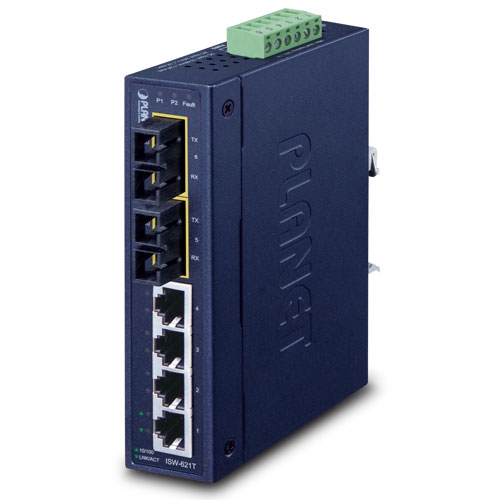

ISW-621T/ISW-621TS15
| Hardware Specifications | |
|---|---|
| Copper Interface |

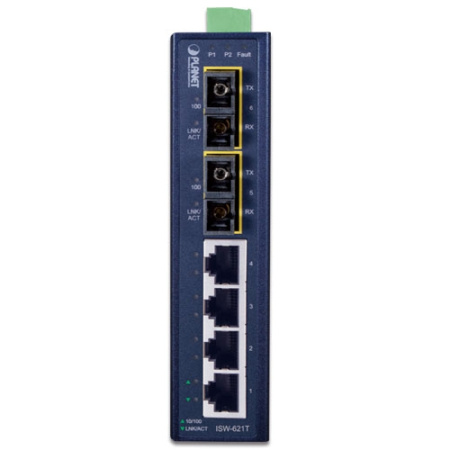

Ports 4 x 10/100Base-TX, auto negotiation, auto-MDI / MDI-X Cable 10Base-T : 2-pair UTP Cat. 3, 4, 5 cable (100meters, max.) 100Base-TX : 2-pair UTP Cat. 5 cable (100meters, max.) |
| Optical Interface |
Port 2 x 100Base-FX Cable ISW-621T: 50/125μm / 62.5/125μm fiber ISW-621TS15: 9/125μm fiber Mode ISW-621T: Multi-mode ISW-621TS15: Single-mode Distance ISW-621T: 2km ISW-621TS15: 20km Wavelength ISW-621T: 1310nm ISW-621TS15: 1310nm Launch Power ISW-621T: Max. -14dBm, Min. -20dBm ISW-621TS15: Max. 0dBm, Min. -20dBm Receive Sensitivity ISW-621T: -32dBm ISW-621TS15: -32dBm Max. Input Power ISW-621T: -14dBm ISW-621TS15: 0dBm |
| Dimensions (W x D x H) | 135 x 97 x 32 mm |
| Weight | 442g |
| Power Requirements |

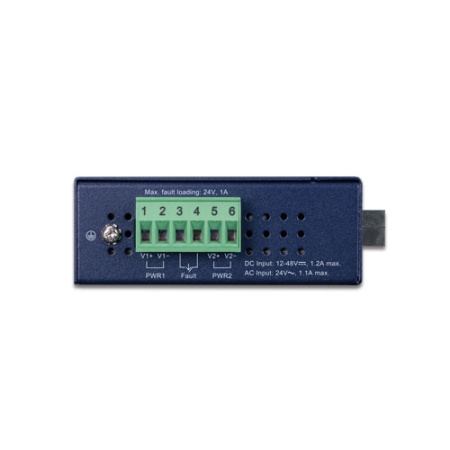

12~48V DC Redundant power with polarity reverse protection function |
| Power Consumption / Dissipation | Max. 16 watts / 54 BTU |
| Installation | DIN rail kit and wall mount ear |
| Alarm |
Provides one relay output for power failure Alarm relay current carry ability: 1A @ DC 24V |
| Switching Specifications | |
| Switch Processing Scheme | Store-and-Forward |
| Address Table | 2K entries |
| Buffer | 1Mbit |
| Flow Control |
Back pressure for half duplex, IEEE 802.3x pause frame for full duplex |
| Switch Fabric | 1.2Gbps |
| Throughput (Packet Per Second) |
0.89Mpps @ 64Bytes |
| Standards Conformance | |
| Standards Compliance |
IEEE 802.3 Ethernet, 10Base-T IEEE 802.3u Fast Ethernet, 100Base-TX, 100Base-FX IEEE 802.3x full-duplex Flow Control |
| Temperature |
Operating: -40~75 degrees C Storage: -40~85 degrees C |
| Operating Humidity |
Operating: 5~90% Storage: 5~90% (non-condensing) |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Stability Testing |
IEC60068-2-32(Free fall) IEC60068-2-27(Shock) IEC60068-2-6(Vibration) |
