Артикул:
IGS-501T
Технические характеристики
| Hardware Specifications | |
|---|---|
| Hardware Version | 4 |
| Copper Ports |

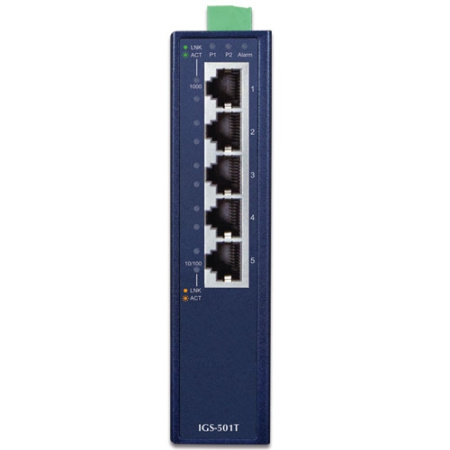

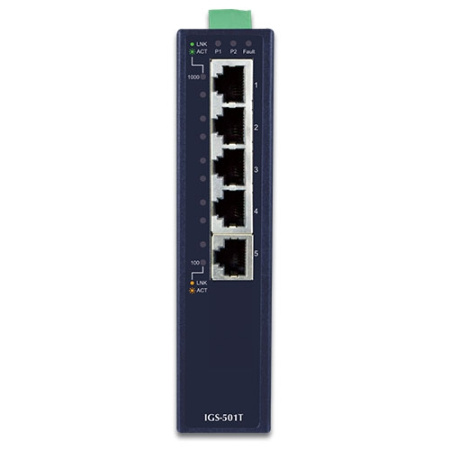

5 x 10/100/1000Base-T RJ45 TP auto-MDI/MDI-X, auto-negotiation |
| Connector |

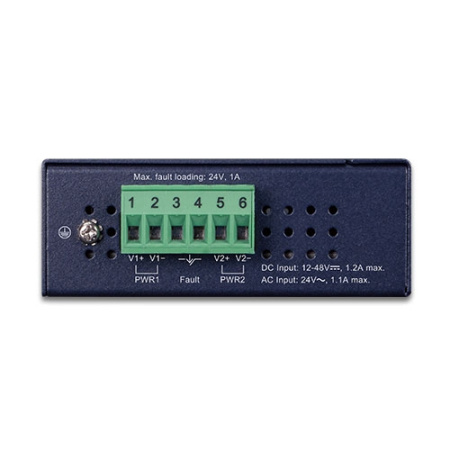

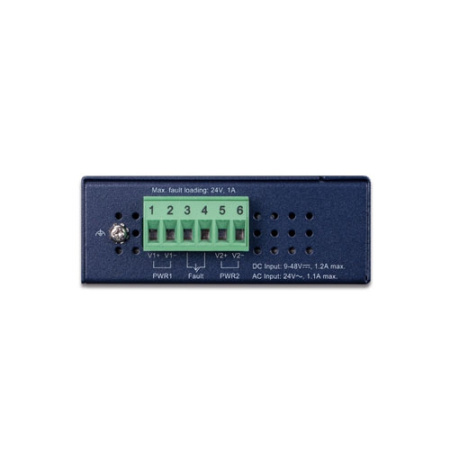

Removable 6-pin terminal block Pin 1/2 for Power 1; Pin 3/4 for fault alarm; Pin 5/6 for Power 2 |
| Alarm |
Provides one relay output for power failure Alarm relay current carry ability: 1A @ DC 24V |
| LED |
3 x LED for system and power: |
| ESD Protection | 6KV |
| EFT Protection | 6KV |
| Power Requirements | 12~48V DC, Redundant power with polarity reverse protection function, 24V AC power support |
| Power Consumption / Dissipation | 5.28 watts/18BTU |
| Installation | DIN rail kit and wall-mount ear |
| Enclosure | IP30 metal case |
| Dimensions (W x D x H) | 32 x 87 x 135 mm |
| Weight | 456g |
| Switch Specifications | |
| Switch Processing Scheme | Store-and-Forward |
| Address Table | 2K entries |
| Buffer Memory | 1M bits on-chip buffer memory |
| Flow Control |
Back pressure for half duplex IEEE 802.3x pause frame for full duplex |
| Switch Fabric | 10Gbps |
| Throughput (packet per second) | 7.4Mpps @64bytes |
| Jumbo Frame | 9K |
| Network Cables |
10/100/1000Base-T Cat. 3, 4, 5, 5e, 6 UTP cable [100 meters (max.)] EIA/TIA-568 100-ohm STP [100 meters (max.)] |
| Standards Conformance | |
| Standards Compliance |
IEEE 802.3 Ethernet IEEE 802.3u Fast Ethernet IEEE 802.3ab Gigabit Ethernet IEEE 802.3x Full-Duplex Flow Control IEEE 802.3az Energy Efficient Ethernet IEEE 802.1p Class of Service |
| Regulation Compliance | FCC Part 15 Class A, CE |
| Stability Testing |
IEC 60068-2-32 (free fall) IEC 60068-2-27 (shock) IEC 60068-2-6 (vibration) |
| Environment | |
| Temperature |
Operating: -40~75 degrees C Storage: -40~75 degrees C |
| Humidity |
Operating: 5~90% Storage: 5~90% (non-condensing) |
